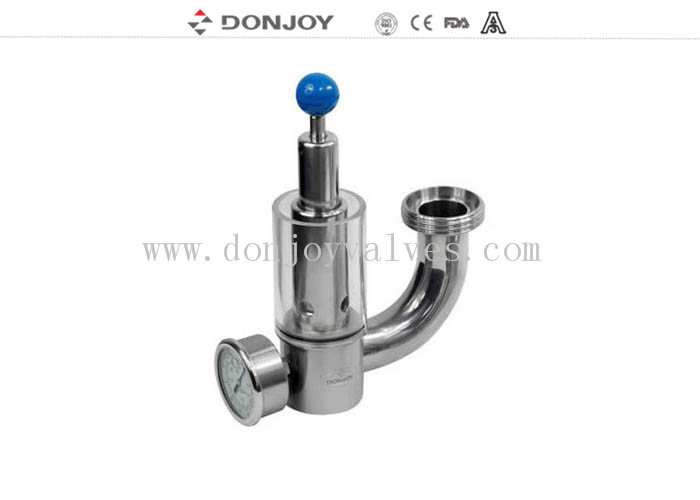

316L Pressure Safety Valve With Pressure Guage exhaust valve with glass window

Nama Merek:	DONJOY
Nomor Model:	NO.VAQ220S1-002
Jumlah Pesanan Minimum:	Negotiation
harga:	USD 10-100 /set
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1"-3"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread,

Polished:

Mirror, Matt

material of gasket:

EPDM,NBR,FPM

Max temperature:

121 degree

Supply Ability:

10000 set / week

Menyoroti:

pressure release valve

air release valve

Deskripsi produk

tSanitary Exhaust Safety pressure release valve with Glass with pressure guage

Quick Detail:

Exhaust Valve, SANITARY VALVES

Type: Glass Type, Thread, Clamp, pressure guage.

Specification

Product Name:	Sanitary Exhaust Safety pressure release valve with Glass with pressure guage
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	8Bar 116PSI
Max. Working Temperature:	120 degree C
Availably size:	1/2",3/4"
Availably connection:	Flange,Clamp,Welded
Availably standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic ,Maual
Certificate:	FDA,CE

Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.

Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Drawing of valve

316L Pressure Safety Valve With Pressure Guage exhaust valve with glass window 0
