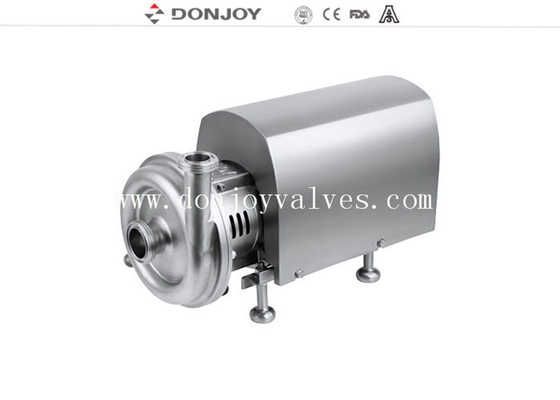

KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical

Nama Merek:	DONJOY
Nomor Model:	KLX-10
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Materials:

SS304

Type:

KLX-10

Operation:

Mechanical ABB Motor

Mechanical:

Single Seal

Connection:

1.5" Thread

Power:

380v / 50HZ

Medium:

beer / drug / beverage etc.

Supply Ability:

20 sets 30 working days

Menyoroti:

self priming pump

lobe rotary pump

Deskripsi produk

KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical

Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. Outside Surface sinishing:sandblast or mirror polish

Specifications

Product Name:	KLX-10 SS304 centrifugal beverage pump open impeller for beer, pharmaceutical
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow:	150 m3/h
Max. Speed:	3600 min-1
Max. Head:	70H (m)
Max. Working Pressure:	7 bar / 99 PSI
Max. Working Temperature:	120 °C
Mechanical seal:	SIC/Sic/EPDM(Standard), C/SIC, TC/TC
Sealing type:	Flushed double mechanical seal / single mechanical seal(standard)
Motor power:	1.1kw, 1.5kw, 2.2kw
Voltage:	110V, 220V, 380V
Motor:	ABB / domestic / SIEMENS
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	KS/BS
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Eclectic
Low discharge option	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control

Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical 0

Tag: Transfer pump , Donjoy centrifugal pumps, Beverage pumps
