High Performance SS316L Globe Valve With Clamped / Automatic Control System

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ200S1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Globe valve

Size Of Panel:

DN10-DN80,1/2"-3"

Operation:

Manual

Material:

304/316L

Connection:

Clamped

Range of application:

Printing,dyeing,bleaching.etc

Brand:

Donjoy

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

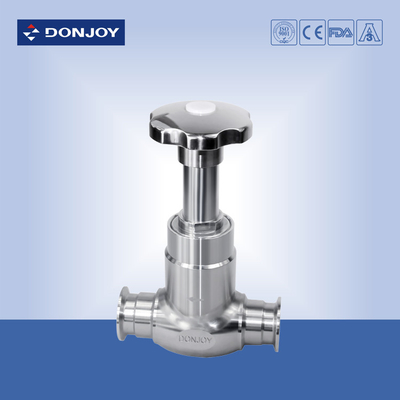

High Performance SS316L Globe Valve With Clamped / Automatic Control System

specifications:

Product Name:	SS316LStainless steel handle globe Valve, Control Valve With Clamped, automatica control system
Valve Body Material:	CF8M/316L,CF8/304
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN80,1/2"-3"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Manual
Certificate:	FDA,CE,ISO

Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. Temperature: maximum temperature up to 200 (depending on the seal type)

4. Seal: elastic shaft seal design, embedded spool design.

Operation Options for Globe Valve

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

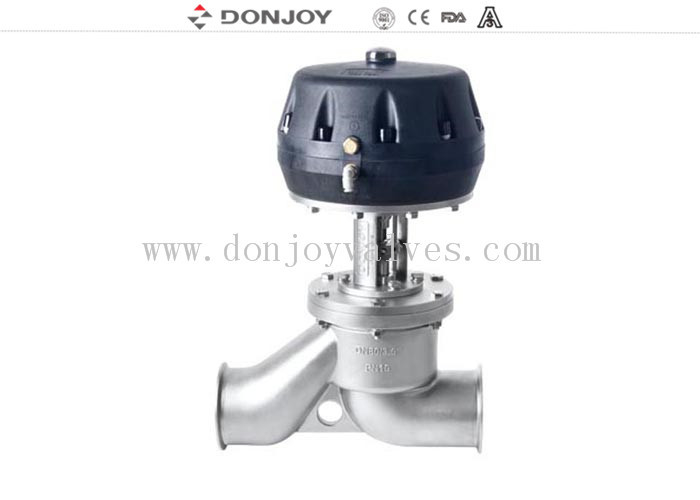

High Performance SS316L Globe Valve With Clamped / Automatic Control System 0

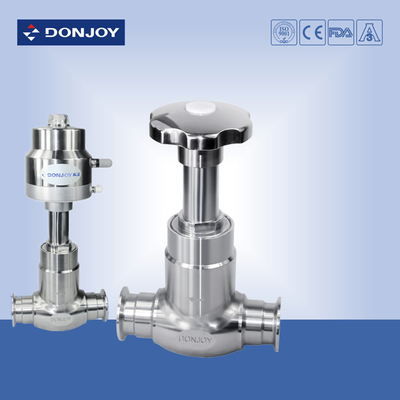

High Performance SS316L Globe Valve With Clamped / Automatic Control System 1

Tag : Globe valves, Sanitary globe valve, Donjoy valves.
