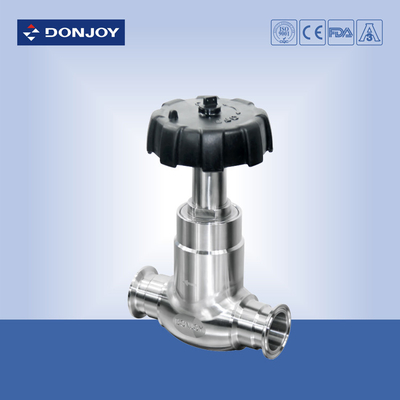

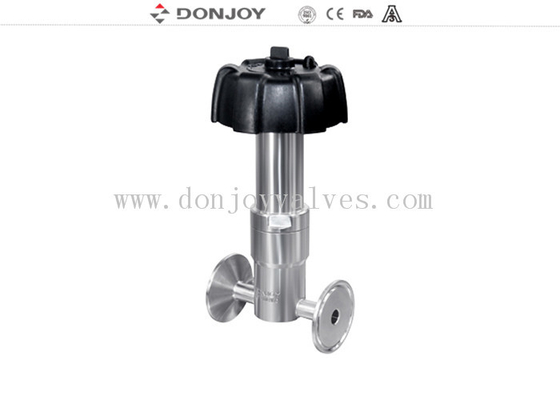

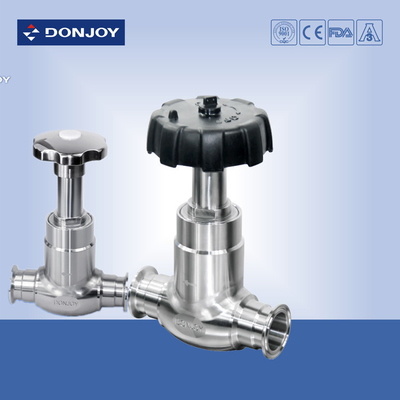

CFM8/316L High Purity Handle Angle Seat Valve , Sanitary Manual Globe Valves

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ200S1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Size Of Panel:

DN10-DN100,1/2"-3"

Operation:

Manual

Material:

316L

Connection:

Thread

Function:

Regulate flow

Gasket:

EPDM

Name:

High purity adjust globe valve

Manual:

Plastic handwheel

Menyoroti:

angle seated valves

slanted seat valve

Deskripsi produk

CFM8/316L High Purity Handle Angle Seat Valve , Sanitary Manual Globe Valves

Detail:

High purity adjust globe valve

1. Connection: Clamped, Thread, Welding,Flange

2. Standard: DIN,3A,SMS,ISO,IDF, RJT..

3. Working pressure: 8bar(standard) 10bar(option)

4. Working temperature: 120℃ (standard) 180℃ (option)

specifications:

Product Name:	CFM8/316 Plastic handle globe Valve, Steam Valve,High purity regulation valve
Valve Body Material:	CF8M/316L,CF8/304
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Manula, Control Head
Certificate:	FDA,CE,ISO

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

Target of competition

Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
