Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator

Nama Merek:	DONJOY
Nomor Model:	NO.
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Powder butterfly valve

Materials:

304 / 316L

Size:

DN65 - DN300, 2.5" - 12"

Operation:

Pneumatic

Connection:

welding

Structure:

With SS actuator

Feature:

Double seat

Menyoroti:

stainless butterfly valves

pneumatic butterfly valve

Deskripsi produk

Single acting normal open Sanitary level 3 inch butterfly valves with stainless steel actuator for powder

Specifications

Product Name:	Pneumatic powder butterfly valve
Valve Body Material:	SS304 / 316L
Seal Material:	EPDM (standard) FPM / SILICON / NBR, FDA 177.2600
Max Working Pressure:	5 Bar
Max.Working Temperature:	120 degree C
Available size:	2.5"-12",DN65-DN300
Available connection:	Clamp /welding / thread / special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual, Pneumatic, Electric
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Feature:	Internal leakage can be observed
Cleaning:	Valve chamber can be cleaned

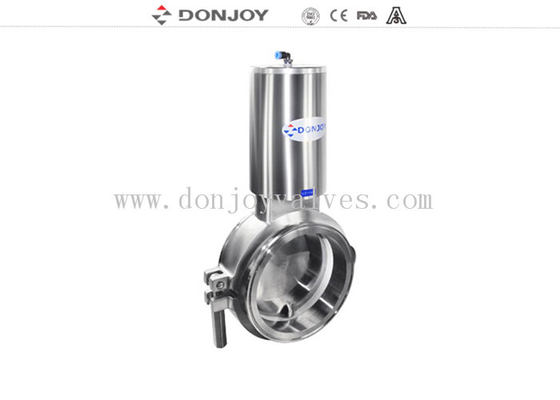

Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 0

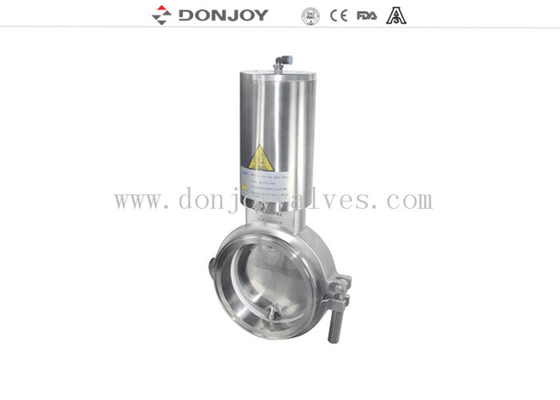

Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 1

Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 2
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Drawing
Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 3
