High Performance Pneumatic Angle Valve For Bleaching Food Washing

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
harga:	$100-$500/pc
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Globe valve

Size Of Panel:

DN10-DN100,1/2"-3"

Operation:

Pneumatic, Control Head,

Media:

ss304/ss316L

Connection:

Clamp

working temperature:

120℃ （standard）180℃（optional）

working pressure:

8bar(standard) 10bar(optional)

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

High Performance Pneumatic Angle Valve For Bleaching Food Washing

specifications:

Product Name:	1.5 inch Stainless steel Acuator globe valve,high purty adjust globe valve
Valve Body Material:	CF8M/316L
Seal Material:	EPDM
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN15-DN65 or 0.5" - 2.5"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Manual, Control Head
Certificate:	FDA,CE,ISO

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

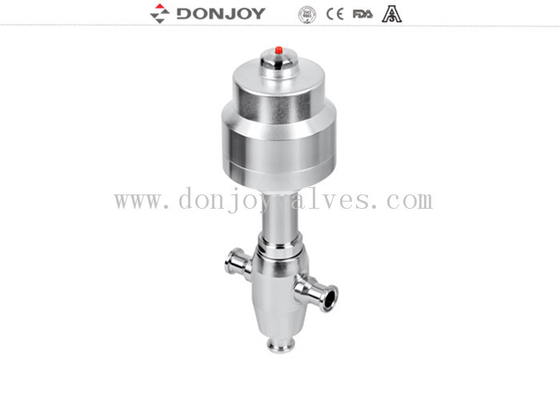

High Performance Pneumatic Angle Valve For Bleaching Food Washing 0

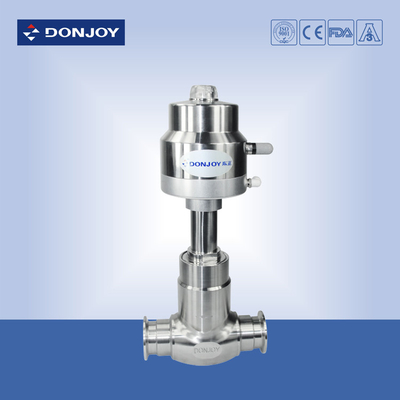

High Performance Pneumatic Angle Valve For Bleaching Food Washing 1
