Donjoy KLX-30 sanitary high purity centrifugal pump open impeller for beverage and comestic

Nama Merek:	DONJOY
Nomor Model:	KS-30
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product:

Movable centrifugal pump

Type:

KS-30

Operation:

ABB / Domestic motor / SIEMENS

Mechanical:

Flush Mechanical seal / Doulbe Seal

Inlet:

2" Thread

Outlet:

1.5" Thread

Rotor:

Open type

Outside:

With cover

Menyoroti:

lobe rotary pump

high pressure pumps

Deskripsi produk

Donjoy KLX-30 sanitary high purity centrifugal pump open impeller for beverage and comestic

Description
Options

1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM

2. Gasket: viton / NBR

3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)

4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60H

Specifications

Product Name:	Centrifugal pump of Model KS
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM(Viton) and NBR
Max. Flow:	150 m3/h
Max. Speed:	3600 min - 1
Max. Head:	70H (m)
Max. Working Pressure:	7 bar / 99 PSI
Max. Working Temperature:	120 °C
Motor:	ABB/domestic/SIEMENS
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Available connection:	Tri-Clamp, Thread, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Low discharge option :	Low discharge / diaphragm valve / ball valve / butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy,food, beverage, pharmacy, cosmetic etc

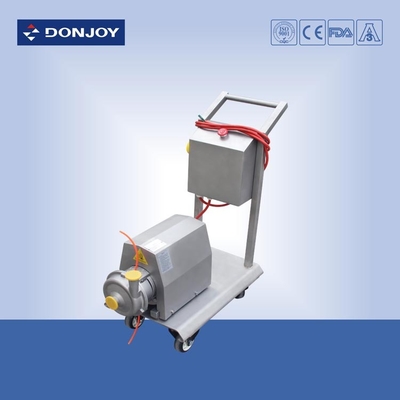

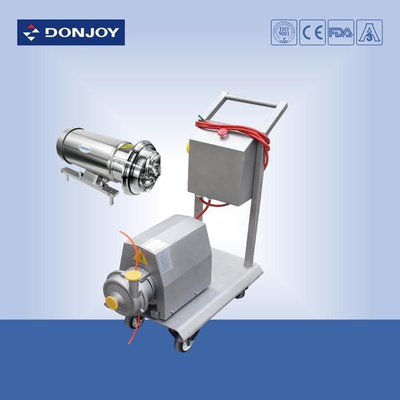

Device	With trolley
Motor	Be covered

Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Packaging Details
Plywood case or customerized. Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Installation
Please check the detailed installation data below.

Donjoy KLX-30 sanitary high purity centrifugal pump open impeller for beverage and comestic 0
