Nama Merek:	DONJOY
Nomor Model:	NO.
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Carton box/Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Manual butterfly valve with position sensor

Materials:

304 / 316L

Size:

1'' - 6'', DN25 - DN150

Operation:

Manual

Connection:

welding

Structure:

With pull rod

Feature:

With position sensor

Supply Ability:

20 sets 30 working days

Menyoroti:

stainless butterfly valves

pneumatic butterfly valve

Deskripsi produk

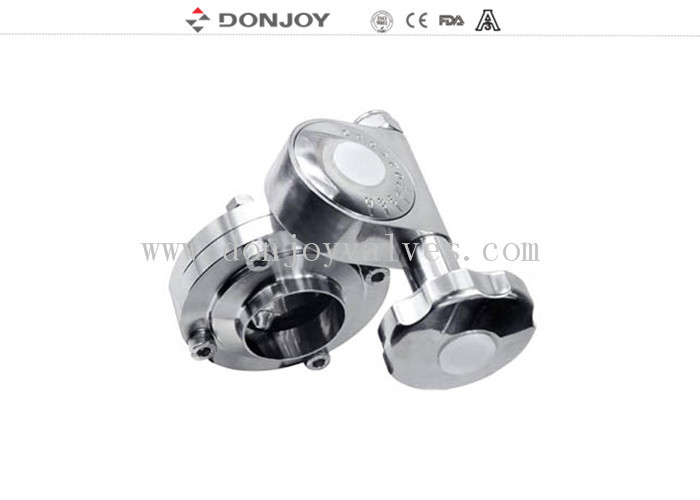

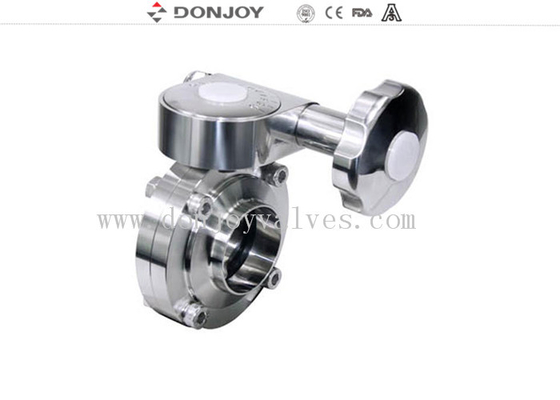

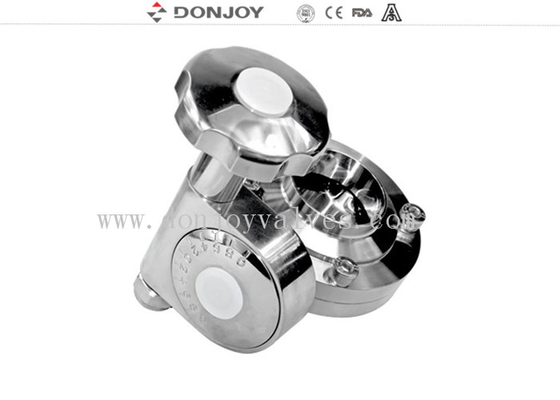

Manual Butterfly Valve Sanitary With Fine Turn Handles, Stainless Steel Valves

Specifications

Product Name:	Manual butterfly valve with position sensor
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
MaxWorking Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	1''-6'', DN25-DN150
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Handle:	Be adjustable
Design:	With patent protection

Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle;

Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Various kinds of manual butterfly valve
Please check the information below for detailed specifications.

Manual Butterfly Valve Sanitary With Fine Turn Handles , Stainless Steel Valves 0
