Hygienic single acting pneumatic powder clamp butterfly valve small torque

Semua Kategori

Kaca penglihatan baja tahan karat

Fitting Sanitasi Baja Tahan Karat

Hubungi Kami

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Hubungi Sekarang

Hygienic single acting pneumatic powder clamp butterfly valve small torque

Nama Merek:	DONJOY
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box or wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Powder butterfly valve

Materials:

316L

Size:

2.5" - 12" / DN65-DN300

Operation:

Pneumatic

Connection:

welded/clamp

Feature:

With pneumatic actuator

Structure:

Butterfly

Supply Ability:

500pcs per month

Menyoroti:

stainless butterfly valves

pneumatic butterfly valve

Deskripsi produk

Hygienic single-acting pneumatic powder clamp butterfly valve small torque

Specifications

Product Name:	Hygienic single acting pneumatic powder clamp butterfly valve small torque
Valve Body Material:	SS316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	DN65-DN300, 2.5"-12"
Available connection:	Clamp/welding
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

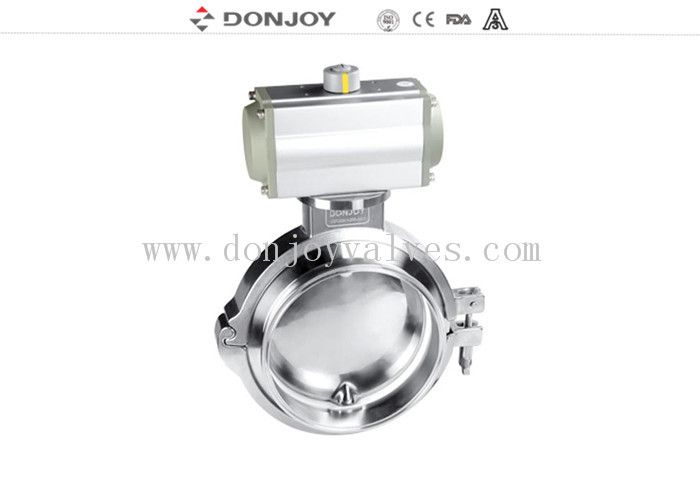

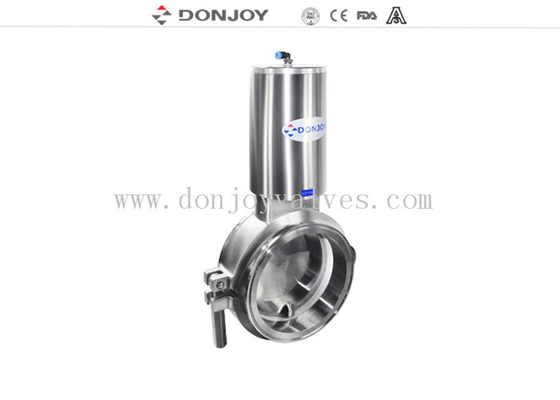

Hygienic single acting pneumatic powder clamp butterfly valve small torque 0

Hygienic single acting pneumatic powder clamp butterfly valve small torque 1

Hygienic single acting pneumatic powder clamp butterfly valve small torque 2

Advantage

1.The butterfly valve dedicated to powder.

2.Apply to a vacuum environment

3.Small torque

4.Long lifetime

5.Easy to disassemble

Material
The material connected with others: AISI 316L
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Hygienic single acting pneumatic powder clamp butterfly valve small torque 3

Hygienic single acting pneumatic powder clamp butterfly valve small torque 4

Tag : Donjoy Butterfly valves, Powder valves, Sanitary butterfly valve
