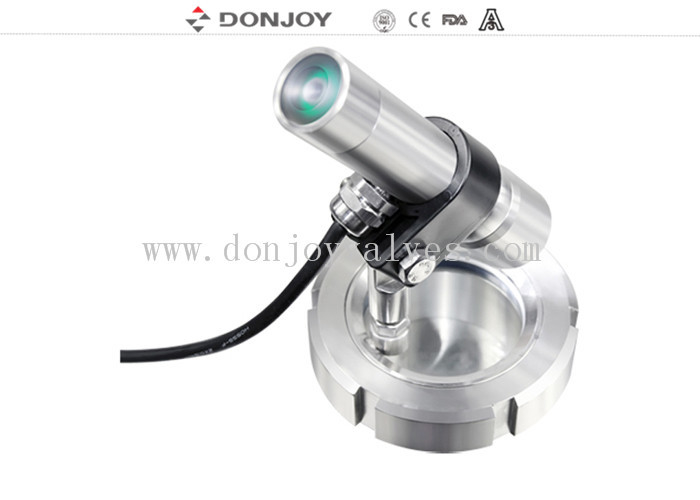

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ303N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

Union sight glass with cable lighting

SIZE:

DN65 - DN150

Stanadard:

DIN, 3A, SMS, ISO

Connection:

Welded, Clamped, Thread

Polished:

Mirror, Matt

Glass:

Tempered glass

Prefabricated cable:

Feature:

Prefabricated pin plug

Supply Ability:

1000pcs per month

Menyoroti:

heavy duty clamp

high pressure hose

Deskripsi produk

Union sight glass Stainless Steel Sanitary Fittings union sight glass with lamp

Brief Instruction

Union Sight Glass with cable lighting

Size:DN65-DN150,3"-6"

Gasket: EPDM,PTFE

Working Pressure:10Bar

Powered DC 24V

Precast cable 2 M

Specification

Product Name:	union sight glass Stainless Steel Sanitary Fittings union sight glass with lamp
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 150 degree
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Prefabricated cable:	2M
Structure:	Prefabricated pin plug

Application
1. Union-type-sight-glass DIN11851/SMS (Standard for dairy products), with transparent circular glass.
2. Threaded nozzle with the welded neck.
3. It is used to view the biologic reactor, blender in laboratory, filter, processing container, pipeline and other closed container.
4. Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.

Technical Feature
DN 65-DN150, 3"-6"
Powered DC 24V
Waterproof hygienic design
Precast cable 2M
Precast pinhole plugs
Charging cable
Prefabricated cable: 2M
Structure
Prefabricated pin plug

Detailed Instruction

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp 0

Display of Union Type Sight Glass + Lighting

Various selection as below

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp 1
