Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L

Nama Merek:	DONJOY
Nomor Model:	NO.CDF100Q2
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box or wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Butterfly valve

Materials:

304 / 316L

Size:

DN10 - DN300, 1/2" - 12"

Operation:

Pneumatic

Connection:

welded

Feature:

With aluminum actuator

Structure:

Butterfly

Menyoroti:

sanitary butterfly valve

stainless butterfly valves

Deskripsi produk

Sanitary Pneumatic Butterfly Valves 10" With Double acting Aluminum Actuator Stainless Steel 304 316L

Specifications

Product Name:	Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	DN10-DN300, 1/2"-12"
Available connection:	Clamp/welding/thread/flange/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Pneumatic
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

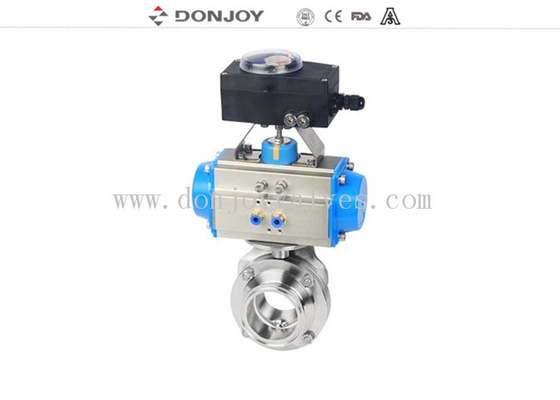

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 0

Data

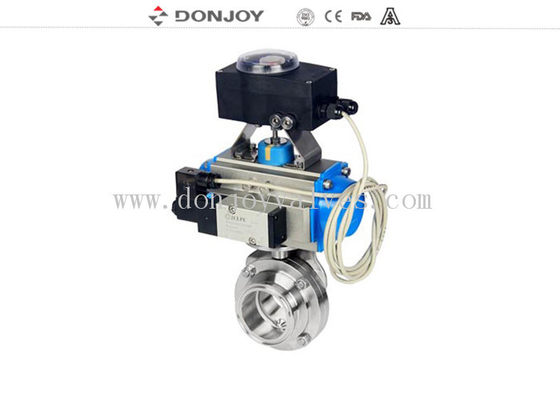

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 1

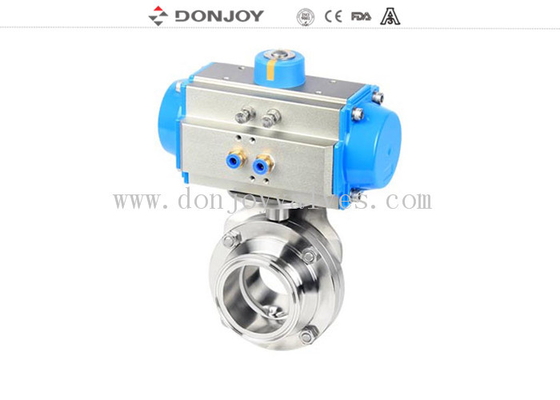

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 2

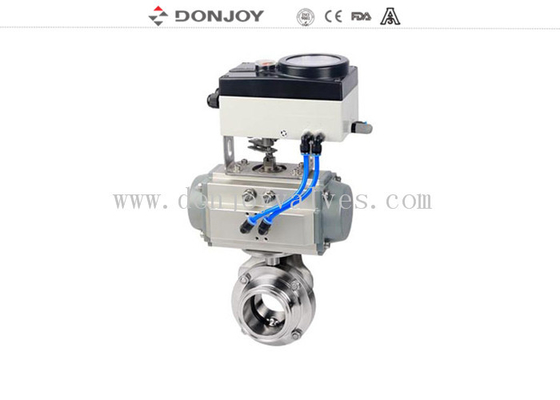

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 3

Pneumatic actuator date

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 4

Double-acting pneumatic actuator Torque Table
Size	Torque(N.M)	Recommend valve size
Size	Torque(N.M)	Butterfly valve	Ball valve	3 way ball valve	Industrial valve
DJ052	21	DN10-DN50, 0.5"-2"	DN10-DN32, 0.5"-1.25"	N/M	N/M
DJ063	37	DN65-DN80, 2.5"-3.5"	DN40-DN50, 1.5"-2"	DN25-DN32, 1"-1.25"	DN25,1"
DJ075	59	DN100,4"	2.5"	DN40-DN50, 1.5"-2"	DN32-DN40, 1.25"-1.5"
DJ083	74	DN125-DN150, 5"-6"	DN65,3"	DN65,2.5"	DN50,2"
DJ092	114	DN200,8"	DN80	3"	DN65,2.5"
DJ105	170	DN250-DN300, 10"-12"	DN100,4"	DN80	DN80,3"
DJ125	292	N/M	DN125,5"	DN100,4"	DN100,4"
DJ140	439	N/M	DN150,6"	N/M	DN150,6"
DJ160	669	N/M	DN200,8"	N/M	DN200,8"

Single acting pneumatic actuator Torque Table
Size	Torque(N.M)	Recommend valve size
Size	Torque(N.M)	Butterfly valve	Ball valve	3 way ball valve	Industrial valve
DJ052-S	12.5-8.5	DN10-DN32, 0.5"-1.25"	DN10-DN15, 0.5"-0.75"	N/M	DN10-DN15, 0.5"-0.75"
DJ063-S	21.2-13.7	DN40-DN50, 1.5"-2"	DN25,1"	DN25,1"	DN25,1"
DJ075-S	292.2-21.2	DN65,2.5"-3"	DN32,1.25"	DN32,1.25"	DN32-1.25"
DJ083-S	46.5-31.6	DN80,3.5"	DN401.5"	DN40,1.5"	DN40,1.5"
DJ092-S	69.3-46.7	DN100,4"	DN50,2"	DN50,2"	DN50,2"
DJ105-S	99-63	DN200-DN250	DN65,2.5"	N/M	DN65,2.5"
DJ125-S	159-105	N/M	DN80,3"	DN80,3"	N/M
DJ140-S	260-172	N/M	DN100,4"	DN100,4"	DN80,3"
DJ160-S	422-279	N/M	N/M	N/M	DN100,4"

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.
