3A CE Pneumatic Double Seat 4" PN16 Butterfly Valves

Nama Merek:	DONJOY
Nomor Model:	NO.VDF301Q1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Carton box/Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Pneumatic double seat butterfly valve

Materials:

304 / 316L

Size:

DN50-DN100,2"-4"

Operation:

Actuator

Connection:

welding

Seal standard:

3A certification

Temperature:

-10℃ to 130℃

Max pressure:

10 bar

Supply Ability:

50 sets 20 working days

Menyoroti:

PN16 Butterfly Valves

4" Butterfly Valves

PN16 electric butterfly valve

Deskripsi produk

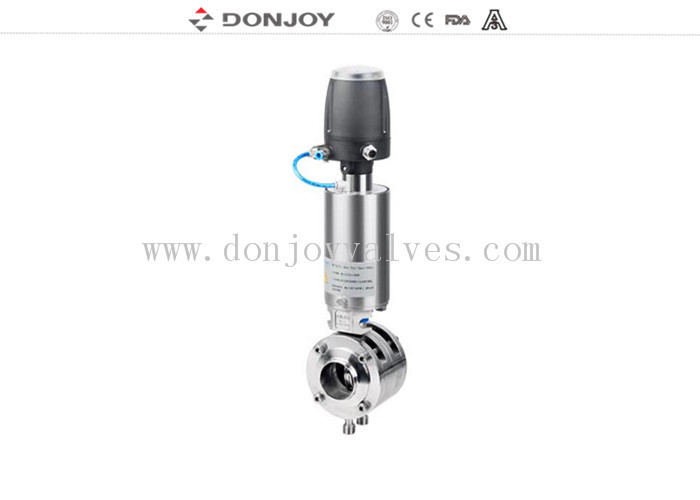

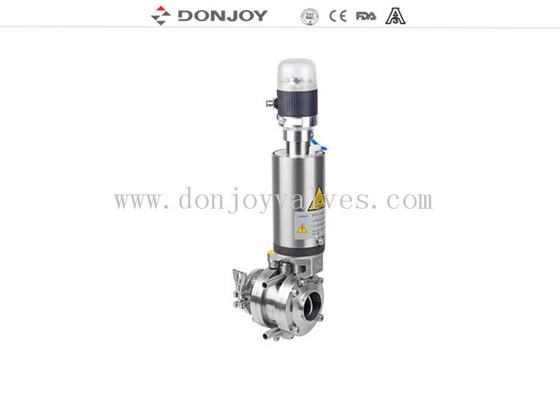

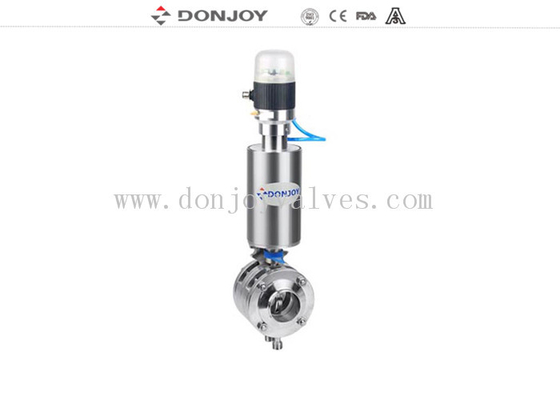

3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP

specifications

Product Name:	3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar,PN16
Max.Working Temperature:	130 degree C
Available size:	DN50-DN100, 2"-4"
Available connection:	welding / thread /Clamp/ special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic
Handle application:	Pull handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Feature of structure:	Mixing proof butterfly valve with position feedback unit F-TOP
Option:	With smart head C-TOP or Positioner IL-TOP

Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single seat butterfly valve;
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Handle selection
Pull handle

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing

Performance of different sealing material
