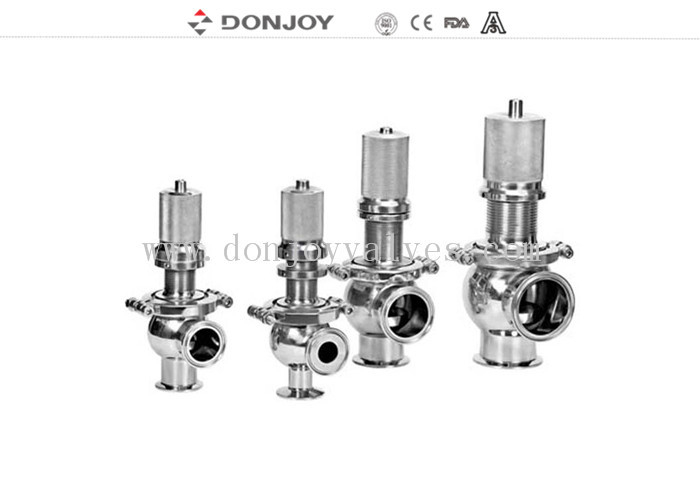

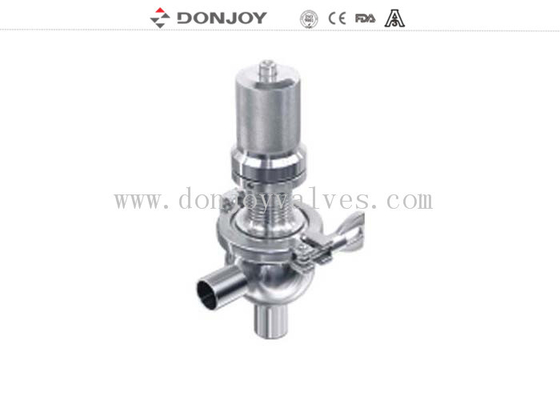

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends

Nama Merek:	DONJOY
Nomor Model:	No.VAQ100S1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

pressure safety valve

SIZE:

1"-4"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread,

Polished:

Mirror, Matte

inlet pressure:

8 bar

outlet pressure:

0-10bar

KV value:

4-70 m3/h

Supply Ability:

1000pcs per month

Menyoroti:

120℃ Over Flow Valve

EPDM Over Flow Valve

120℃ pressure release valve

Deskripsi produk

Sanitary pressure safety valve over flow valve EPDM gasket 120℃ temperature clamp ends

Quick Detail
Pressure Safety Valve, Over flow Valve
Type: Manula, Pnuematic

Technical Specifications

◆Size:1"-4",DN25-DN100
◆KV Value:8.5-180m3/h
◆Max. temperature:-20℃到150℃(depend on seal material)
◆Set pressure:(0-3bar/0-6bar/6-10bar)
◆Material:304/316L
◆Certification: safety valve manufacturing license for special

Specification

Product Name:	manual pressure safety valve
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	8Bar 116PSI
Max. Working Temperature:	120 degree C
Available size:	DN25-DN80 or 1” - 3"
Available connection:	Flange,Clamp,Welded
Available standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic ,Manual
Certificate:	FDA,CE

Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is best choice for protection equipment in diary ,food, beverage, pharmacy and fine chemical industries.

Operating Principle:
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specified pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Drawing

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 0

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 1

Products

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 2
