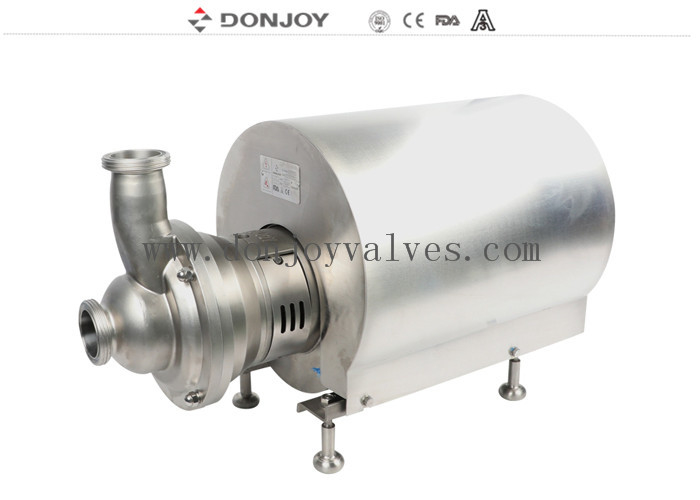

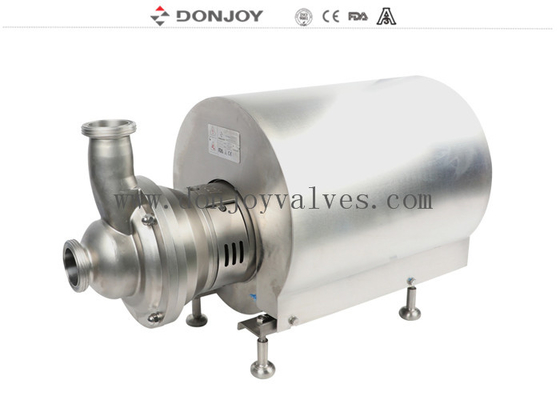

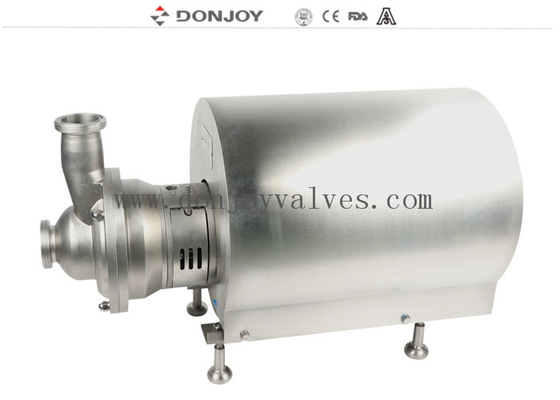

Sanitary Self Priming Pumps / CIP Pump / Suction Pumps

Nama Merek:	DONJOY
Nomor Model:	CIP-10
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product:

Sanitary Self priming pumps / CIP Pump/ Suction Pumps

Type:

CIP - 10

Selection:

10T / 24M / 5.5KW; 15T / 18M / 5.5KW / 20T / 11M / 5.5KW

Mechanical:

Single Seal

Inlet:

2.5" Thread / Clamp / Ferrule

Outlet:

2.5" Thread / Clamp / Ferrule

Structure:

Be covered

Supply Ability:

10 sets 30 working days

Menyoroti:

Sanitary Self priming pumps

Suction Pumps

CIP Pump

Deskripsi produk

Sanitary Self priming pumps / CIP Pump/ Suction Pumps

Description Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange ( DIN, SMS, RJT, IDF )

Specifications

Product Name:	CIP Pump
Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM(Viton) and NBR
Max. Flow:	35 m3/h
Max. Speed:	3600 min-1
Max. rev:	1750Min - 1
Max. suction height	8m / 22 ft
Max. Head:	42H(m)
Max. Working Pressure:	4.2Bar
Max. Working Temperature:	120 °C
Mechanical seal:	C /SIC /EPDM
Motor:	ABB / domestic
Motor Frequency:	50HZ, 60HZ
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Low discharge option :	Low discharge / diaphragm valve / ball valve / butterfly valve
Application scope:	Dairy,food, beverage, pharmacy, cosmetic etc

Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.

Operation Principles
1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.

Design and features
1. Motor cover manufactured with Cold-formed plate
2. stainless steel investment casting inlet body and impeller
3. Mechanical seal prevents contacting between the spring and the pumped fluid.
4. Stainless steel support
5. Surface finished: Sandblast

Connection :

Sanitary Self Priming Pumps / CIP Pump / Suction Pumps 0

Selection table

Sanitary Self Priming Pumps / CIP Pump / Suction Pumps 1

Sanitary Self Priming Pumps / CIP Pump / Suction Pumps 2

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
