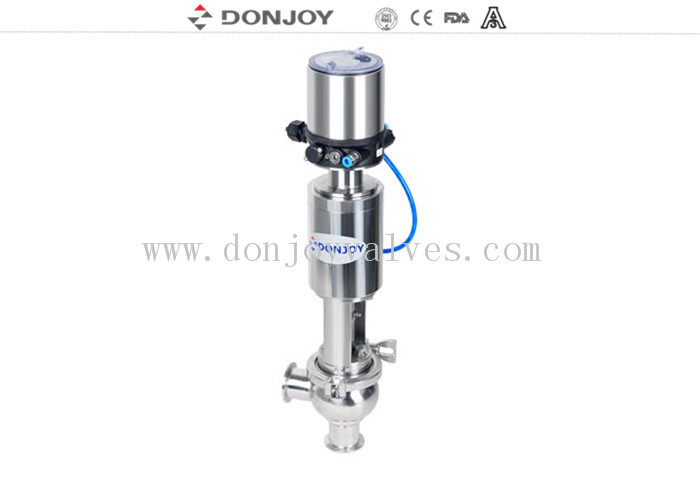

SS316L DN 50 Pneumatic Regulating/Shut off Valve with Intelligent Positioner

Nama Merek:	DONJOY
Nomor Model:	NO.VTJ111Q1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Regulating Valve with actuator

Size Of Panel:

DN25 - DN100 or 1" to 4"

Operation:

Pneumatic with Control Head

Materials:

stainless steel

Media:

304 / 316L

Gasket:

EPDM

Feature:

Precise control

Supply Ability:

20 sets 30 working days

Menyoroti:

ball valve diaphragm

pressure reducing valve

Deskripsi produk

SS316L / SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner

Specifications:

Product Name:	SS316L / SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM/FPM(Optional)
Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Available size:	DN25-DN100 or 1" - 4"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to intelligent/C-TOP controller
Operate:	Pneumatic
Characteristic	Prescise regulation
Certificate:	FDA,CE
External surface finish:	CNC fine machining

Description:
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Applications:
Regulating valve is a pneumatic Proportional valve, is a equipment to control the flow, widely used to the dairy,food, beverage,pharmacy and chemical industry. Most important application is the pressure control, flow control, level,ect.

Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)

Product data

SS316L DN 50 Pneumatic Regulating/Shut off Valve with Intelligent Positioner 0

Product display

SS316L DN 50 Pneumatic Regulating/Shut off Valve with Intelligent Positioner 1

SS316L DN 50 Pneumatic Regulating/Shut off Valve with Intelligent Positioner 2

SS316L DN 50 Pneumatic Regulating/Shut off Valve with Intelligent Positioner 3
