SS316L Stainless steel pneumatic clamped butterfly valve with position sensor

Nama Merek:	DONJOY
Nomor Model:	NO.
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Pneumatic butterfly valve with position sensor

Materials:

304 / 316L

Size:

1'' - 6'', DN25 - DN150

Operation:

Pneumatic

Connection:

Clamped

Structure:

stainless steel pneumatic actuator

Feature:

With position sensor

Supply Ability:

20 sets 30 working days

Menyoroti:

sanitary butterfly valve

pneumatic butterfly valve

Deskripsi produk

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor

Specifications

Product Name:	Pneumatic butterfly valve with position sensor
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
MaxWorking Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	1''-6'', DN25-DN150
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual, Pneumatic, Electric
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Actuator:	Stainless steel pneumatic actuator
Design:	With patent protection

Pneumatic actuator optional
1.Vertical stainless steel pneumatic actuator(Single acting, double acting)
2.Horizontal aluminum pneumatic actuator(Single acting, double acting)

Connection
Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery detail
Usually within 20 days after receiving T/T down payment

Product drawing

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor 0

Product display

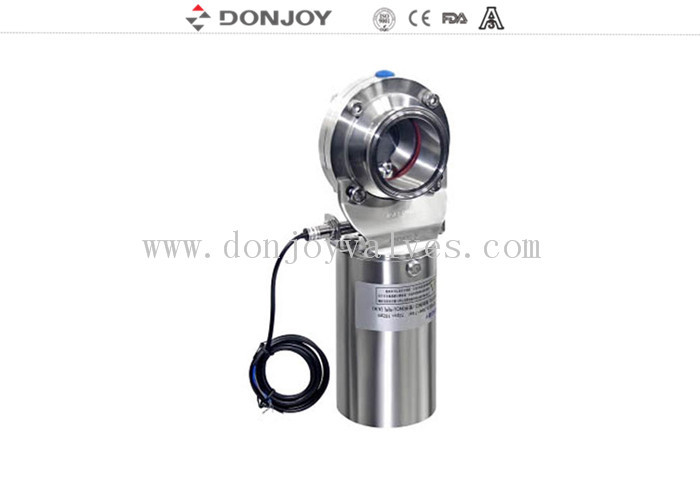

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor 1

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor 2

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor 3
