Y Type Sanitary Strainers Stainless Steel , SS316L Y Type Pipeline Filter

Nama Merek:	DONJOY
Nomor Model:	NO.EGL310
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1"-4"

Materials:

Stianless Steel

Connection:

Clamped, Thread, Welded

Polished:

Mirror, Matt

MOQ:

1 PCS

Menyoroti:

pipe filters

inline sanitary filter

Deskripsi produk

Y Type Sanitary Strainers Stainless Steel , SS316L Y Type Pipeline Filter

Quick Detail

Sanitary filter/Strainer

Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

Size:1"-4"

Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

14℉ to 248℉

Max pressure: 10Bar,145PIS

Screen:30-300meshes

Screen Hole:0.5mm-2mm

Surface: Inside RA≤0.8um,Outside: Mirror Polished

Connection: Clamped, Welded, Thread

Standard: DIN,3A, RJT,SMS,ISO,IDF

Gasket: Silicone, FPM, NBR(FDA 177.2600)

Specification

Product Name:	Y type strainer, Y type FIlter SS316L,1 inch to 4 inch use to the pipeline Inlet
Material:	AISI304, AISI316L
Size:	1-4"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded, Threaded, Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Operating Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh

Application:

The filter is a equipment to remove a small amount of solid particles in the liquid, protect compressor,pump,instrument and other equipment can work normally. When need to be clean,as long as you Take out the dismountable filter cartridge, to reload after processing,so it's more convenient to ues or maintain. This series of filters have advantages for compact structure, big filter ability, small pressure loss, the applicable scope is wide, easy maintenance, price is low and so on

Payments Term:

Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance ,balance before shippment.

Delivery time: For the samples within 7 days. For the large order always with 15 days.

Term of conditions: EXW PRICE, FOB, CIF....

Metal Mesh

Mesh	B(MM)	Useful Surface(%)
30	0.55	48
40	0.4	46
60	0.3	52.6
80	0.2	42
100	0.15	36.2
165	0.1	45.4

Perforate Plate

A(MM)	Useful Surface(%)
0.5	15
1	28
1.5	33
2	30
3	33
5	46

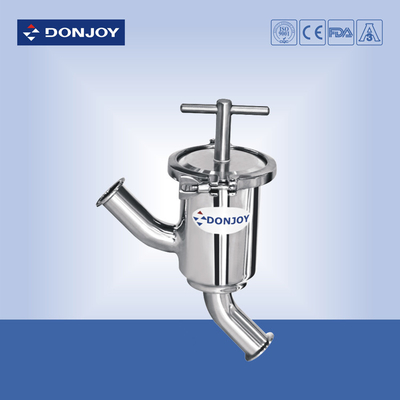

Y Type Sanitary Strainers Stainless Steel , SS316L Y Type Pipeline Filter 0

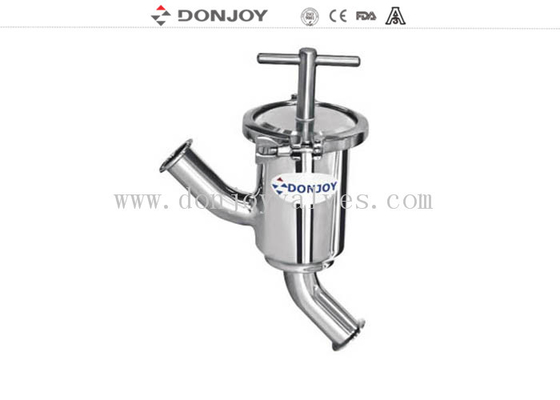

Y Type Sanitary Strainers Stainless Steel , SS316L Y Type Pipeline Filter 1

If you have any problems, Please do not hesitate to contact us.
