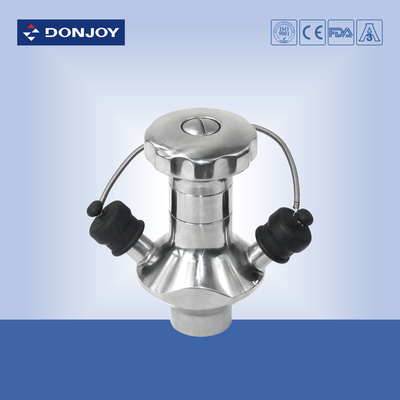

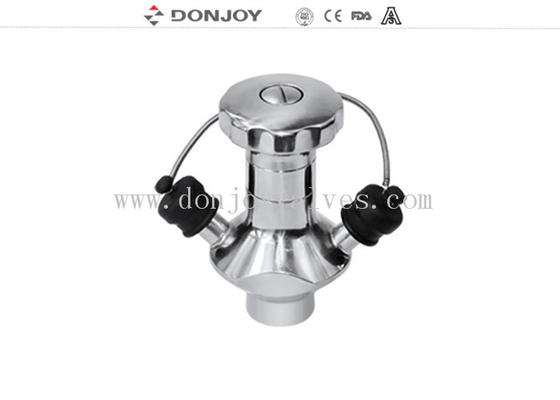

Extracting Sample Valves Biological pharmacy sanitary grade manual aseptic

Nama Merek:	DONJOY
Nomor Model:	ASEPTIC MODEL
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	WOODEN CASE, CARTONS
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

12.7mm,1/2"mm

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped

Polished:

Mirror, Matt

Feature:

aseptic

Function:

for extracting sample

Menyoroti:

Sample valves

sampling valve stainless steel

Deskripsi produk

Extracting Sample Valves Biological pharmacy sanitary grade manual aseptic

The aseptic sampling valve is designed for sterilization before and after each sampling.

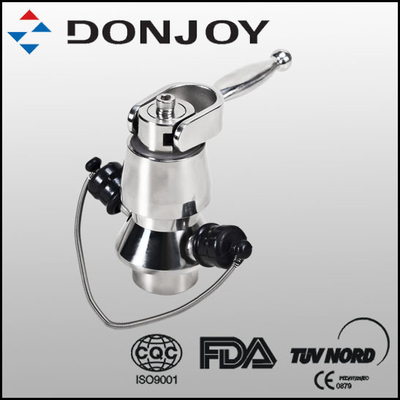

Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the
lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

Standard design:
the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

Handle:
(1) Turning handle (2) removable key

Application:
The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .

Specification

Product Name:	Sanitary Stianless Steel sample Valve,Auto reset Aspetic Sampling Valve
Material:	AISI304, AISI316L
Size:	12.7mm,1/2"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Type:	Handle
Working Pressure:	6 bar
Gasket:	EPDM,PTFE
Connection:	Welded,Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Technical features
It could bear higher pressure; shorter height of valve; could resist water hammer and positioner could be installed on side way to realize automatic flow regulation.

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Certificates
3A/54-02 (1580),
PED/97/23/EC,
FDA.177.2600, ISO

Optional
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting

Packaging and delivery details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Usually within 20 days after receiving T/T down payment.

Drawing
Extracting Sample Valves Biological pharmacy sanitary grade manual aseptic 0
