Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket

Nama Merek:	DONJOY
Nomor Model:	NO.MINI-VAQ100S1
Jumlah Pesanan Minimum:	Negotiation
harga:	USD 10-100/set
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1" DN25

Connection:

Welded, Clamped,Thread,

Polished:

Mirror, Matte

PRESSURE:

8 BAR

working temperature:

-10℃~150℃

Supply Ability:

10000 set /week

Menyoroti:

pressure regulating valve

pressure release valve

Deskripsi produk

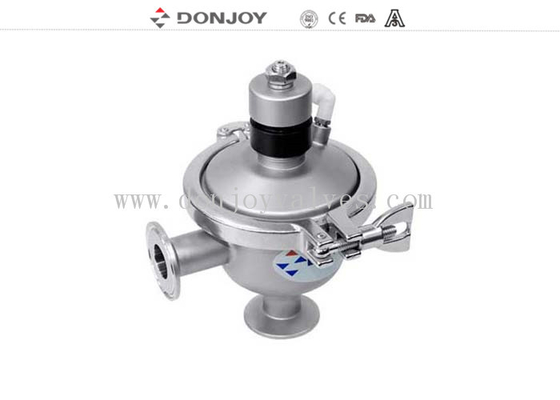

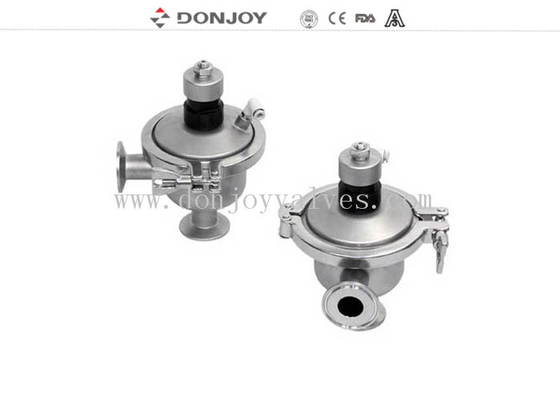

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket

◆Miniature Constant Pressure Regulating Valve is a sanitary constant pressure valve to be applied to the food processing, beverage, pharmaceutical and other areas of the pipeline system.
◆Constant pressure design has two kinds to maintain a constant pressure function selection:
1) V type (inlet constant pressure); maintain constant pressure at the valve inlet. Such design is specially applied at the back of heat-exchanger. It is used as safety valve.
2) A type (Outlet constant pressure): maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine.

Quick Detail:
Constant pressure Valve
Type: A type, V type, Mini Type, WITH SUPERCHARGER

Specification

Product Name:	Mini Constant pressure Valve V type with clamped connection, EPDM+PTFE Gasket
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM+ PTFE
Max.Working Pressure:	8Bar 116PSI
Max. Working Temperature:	-10~150 degree C
Available size:	1.5",2",2.5"
Available connection:	Flange,Clamp,Welded
Available standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic ,Maual
Certificate:	FDA,CE,ISO,3A

Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is the best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.

Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Drawing

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket 0

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket 1
