BSP thread Sanitary Ball Valve , 3 pcs Flush flange tank Bottom Valve

Nama Merek:	DONJOY
Nomor Model:	NO.VQW110Q2
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

tank bottom ball valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

Pneumatic, Control Head,Manual

Material:

304/316L

Connection:

Welded, Clamped, Thread, Flange

Application:

dairy products, food, neverage, chemical

Menyoroti:

electric ball valve

pneumatic ball valve

Deskripsi produk

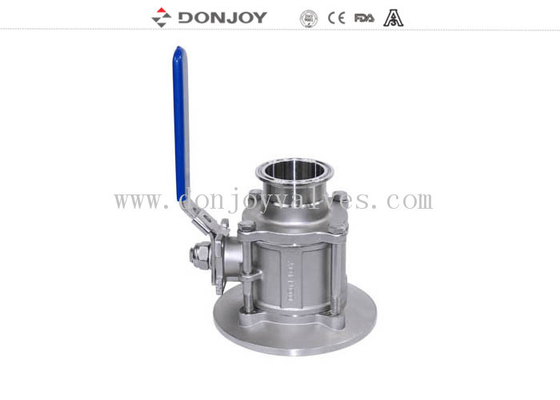

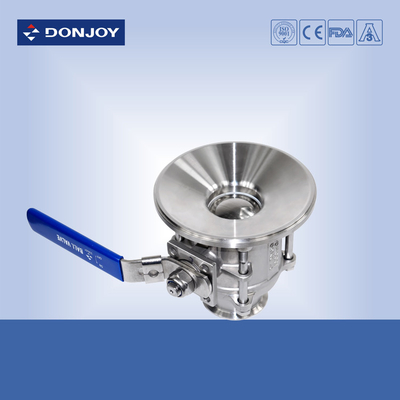

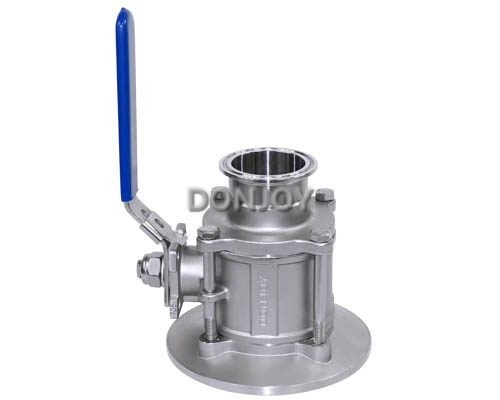

BSP thread Sanitary Ball Valve , 3 pcs Flush flange tank Bottom Valve

Description:

Size:DN10-DN100 or 1/2"-4"

Connection form:welding

Driving mode: manual

Channel: straight through type

Flow rate:10t-60t

Specification:CE, SGS

Specification

Product Name:	3 pcs Flush flange tank Bottom Valve, BSP thread non-retention Ball valve Full Port
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN100 or 1" - 4"
Availably connection:	Weld,Clamp,Thread, Flange
Availably standard:	DIN,SMS,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	FDA,CE,3A,ISO

Applications:

The tank bottom ball valve is a specially designed applied to pressure vessels and equipment, including tank emptying and feeding of tank bottom valve, turnkey tee and sealing automatic compensation design, therefore, with the high pressure and high temperature resistant, torque, etc. The characteristics of long service life, content with CIP and SIP cleaning and sterilization. Very suitable for application in high clean technology system such as biological pharmacy, food and beverage, dairy products, chemical and other fields.

A configurable various actuators, such as electric, pneumatic, manual interchangeable.

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
