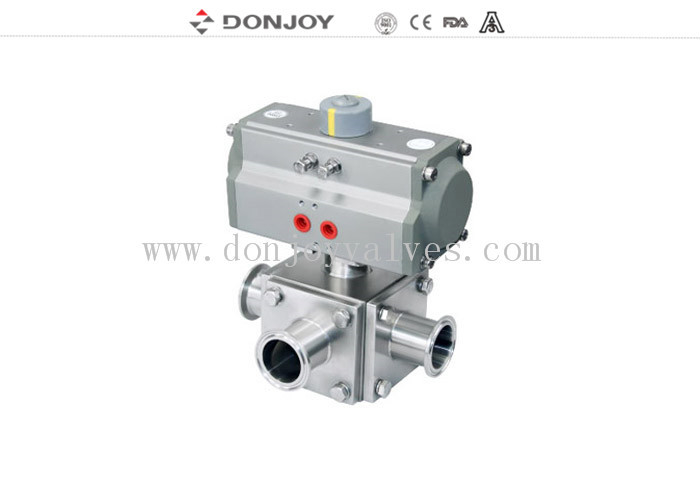

Sanitary Three way non retention Ball Valve with Aluminium Pneumatic

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

ball valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

pneumatic, manual,electric modes

Material:

ss 304/316L

Connection:

Welded, Clamped, Thread etc

Ball:

T port, L port

Menyoroti:

electric ball valve

stainless steel ball valve

Deskripsi produk

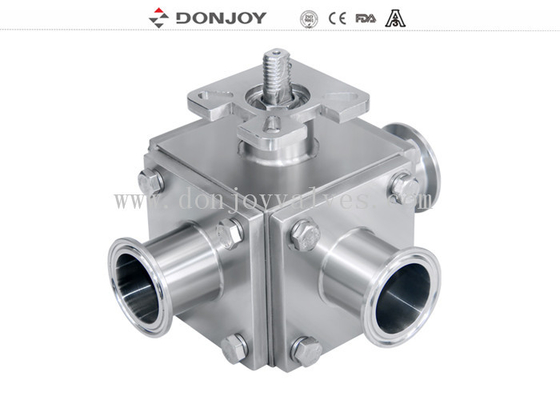

Sanitary Three way non retention Ball Valve with Aluminium Pneumatic

Detail:

Manual Ball Valve, Pneumatica ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/L type

Connection: Clamped, Thread, Welding etc

Certificate: PED, 97/23EC

Specification

Product Name:	Sanitary Aluminum Pneumatic direct way ball valve, L type,PTFE Seat
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN10-DN100 or 1/2" - 4"
Availably connection:	Weld,Clamp,Thread
Ball
Ball	Tport , L port
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	PED, 97/23EC

Applications:

The hygienic design of the valve is widely used in the field of food processing, beverage, fruit juices, wine, biopharmaceutical and very flexible body combinations for example, L-Port or T-Port can be interchangeable on-site inlet, outlet to be any combination of change can guarantee dead angle, no retention.

Sanitary Three way non retention Ball Valve with Aluminium Pneumatic 0

Design and Features

Free of maintenances

Compact and portable

Small operating torque

Gasket complies with PTFE FDA 177.2600

Hand lever can be installed on the side of valve body, no matter of the flow direction.

Connection ends: thread, clamp, weld, flange, DIN, SMS,RJT,FIL

It can be installed with pneumatic and electric actuators.

The part contacted with media is AISI 304/316L

Other parts AISI 304

Certifications: PED, 97/23EC

Drawing

Sanitary Three way non retention Ball Valve with Aluminium Pneumatic 1

Sanitary Three way non retention Ball Valve with Aluminium Pneumatic 2

Relative products

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Tag: 3 way ball valves, T ype Ball valves, L type Ball valves, Manual Ball valves
