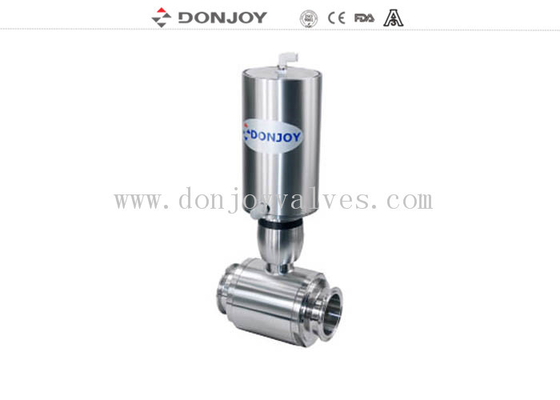

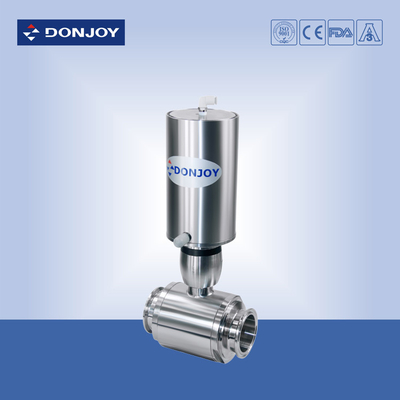

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Ball Valve

Specificationl:

DN10-DN100,1/2"-4"

Operation:

Pneumatic, Control Head,Manual

Media:

304/316L

Connection:

Welded, Clamped, Thread, Flange

Body construction:

Directly

Menyoroti:

electric ball valve

,

pneumatic ball valve

Deskripsi produk

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection

Quickly Detail:

Size:1/2"-4", DN10-DN100

Materials: AISI 304/1.4301, AISI16L/1.4404

Connection: Welding, Clamp, Thread, Flange

Flow pattern: Directly

Seat material: PTF

Design and Feature

1. Free of Maintenances

2. compact and portable

3. small operating torque

4. gasket complies with PTFE FDA 177.2600

5. Hand lever can be installed on the side of the valve body, no matter of the flow direction

6. It can be installed with pneumatic and electrick acuators.

7. With Cleaning and drainage port

Specification

Product Name:	Stainless steel Pnuematic direct ball valve with Clamped Connection
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1" - 4"
Availably connection:	Weld,Clamp,Thread, Flange
Availably standard:	DIN,SMS,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	FDA,CE,3A,ISO

Application

Food Industry	Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals	Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
Pharmacy	Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry	Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry	Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection 0

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection 1

If you need more information,please do not hesitate to contact us.
