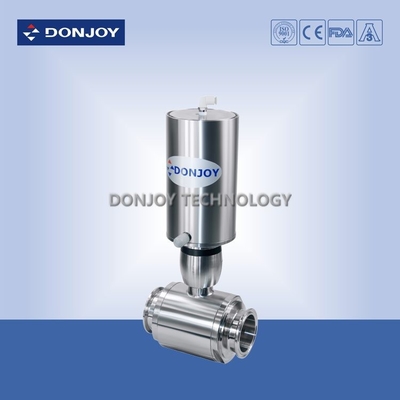

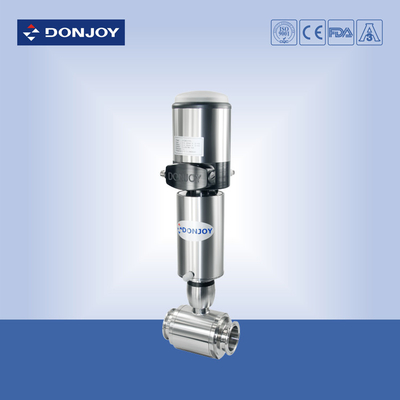

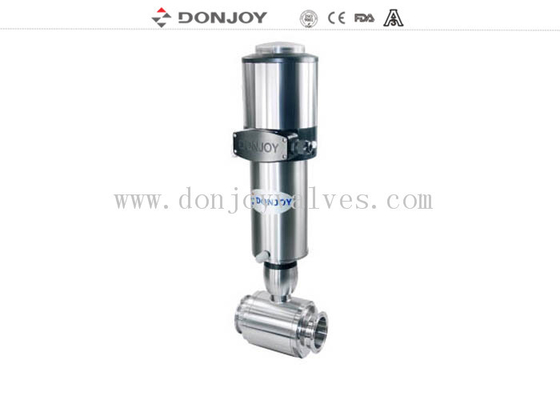

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Ball Valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

Pneumatic, Control Head,Manual

Media:

Water

Connection:

Welded, Clamped, Thread, Flange

Power:

DC 24V

Supply Ability:

100pc/Day

Menyoroti:

pneumatic ball valve

,

stainless steel ball valve

Deskripsi produk

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner

Quickly Detail:

Size:1/2"-4", DN10-DN100

Structure: Ball

Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404

Standard: DIN, SMS, 3A, ISO,RJT....

Connection: Welding, Clamp, Thread, Flange

Flow pattern: Directly

Seat material: PTFE

Operating Type: Manual, Pnumatic, Control Head, Postioner...

Website: www.cndonjoy.com

Specification

Product Name:	Stainless steel Pnuematic direct ball valve with Clamped Connection
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1" - 4"
Availably connection:	Weld,Clamp,Thread, Flange
Availably standard:	DIN,SMS,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	FDA,CE,3A,ISO

Design and Feature

1. Free of Maintenances

2. compact and portable

3. small operating torque

4. gasket complies with PTFE FDA 177.2600

5. Hand lever can be installed on the side of the valve body, no matter of the flow direction

6. It can be installed with pneumatic and electrick acuators.

7. With Cleaning and drainage port

Application:

It is widely used in beverage, brewing, oil refinery, cosmetic, chemical industrial

1, How about the surface polishing ?

Answer: Ra ≤0.8um

2, Shipment way choose.

Answer:If small qty package will suggest ship by express or airline,large qty will be ship by sea(LCL/FCL)

3, How about the delivery time ?

Answer:With the standard products normally delivery time will be10-15days after receive your down payment or full payment.

4. What about the payments Term

Answer: By T/T or L/C at Sight

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner 0

If you need more informations,Please do not hesitate to contact us.
