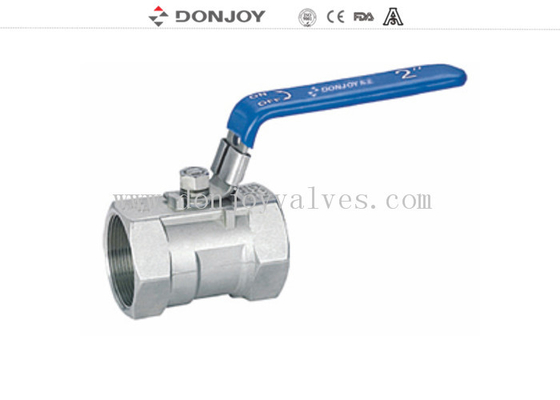

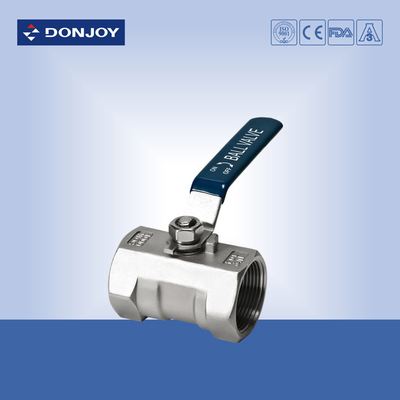

One Peice Sanitary Ball valve With Female Thread Connection

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

one piece industrial Ball Valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

manual, electric, pneumatic actuator

Media:

304/316L

Connection:

Welded, Clamped, Thread,DIN,SMS

Nominal pressure:

Pn16-Pn64

Menyoroti:

electric ball valve

stainless steel ball valve

Deskripsi produk

One Peice Sanitary Ball valve With Female Thread Connection

Detail:

one piece ball valve

Connection: Clamped, Thread, Welding,DIN, SMS

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Channel:straight through type

Specification

Product Name:	Stainless steel One Peices industrial Ball valve With Female Thread Connection
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Working Temperature:	-40-180 degree
Availably size:	DN8-DN100, 1/2"-4"
Availably connection:	Weld,Clamp,FemaleThread
Availably standard:	DIN,SMS,3A
Channel	straight through type
Operated:	Manual,Pneumatic,Electric,
Certificate:	DIN, SMS 3A

Applications:

This series ball valve is applicable for petroleum, food beverage, cosmestic industries.

This kind of ball valve can work by pneumatic actuator operation or manual operation.

Structure: one-piece, two-piece, three-piece, flange, etc.

Technical Feature

Nominal pressure: PN1.6, 2.5, 4.0, 6.4MPa

Strength testing pressure: PT2.4, 3.8, 6.0, 9.6 MPa

Seat testing pressure(low pressure): 0.6MPa

Applicable temperature: -40 C to 180 C

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Trovincial Science R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

One Peice Sanitary Ball valve With Female Thread Connection 0
