SS316L / SS304 Sanitary Diaphragm type Regulating Valve for regulating flow

Nama Merek:	DONJOY
Jumlah Pesanan Minimum:	Negotiation
harga:	US $130 - 670 / Piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Regulating Valve

Size Of Panel:

DN25 - DN100

Operation:

Manual

Media:

304 / 316L

Function:

Flow controlling

Connection:

Clamped

Supply Ability:

1000 Piece/Pieces per Month

Menyoroti:

ball valve diaphragm

diaphragm actuator valve

Deskripsi produk

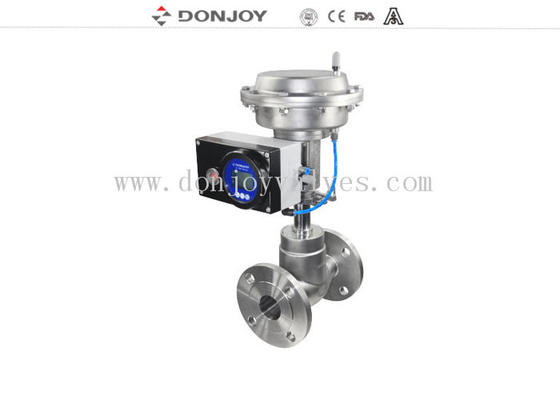

SS316L / SS304 Sanitary Diaphragm type Regulating Valve for regulating the flow

Specifications

Product Name:	Pneumatic Regulating Valve with Control Head
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM
Installation	Rotary handle
Feature	Regulating and controlling
Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Available size:	DN25 - DN100 or 1" - 4"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to the intelligent/C-TOP controller
Operate	Pneumatic
Certificate:	FDA,CE

Description

Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Applications
Regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow.It's widely used to the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level,ect.

Operating Principles
The position of valve tapered plug is adjusted by position.
So as to control flow rate through the valve(PD).
Besides intelligent process controller can control position and flow rate(PID)

Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
