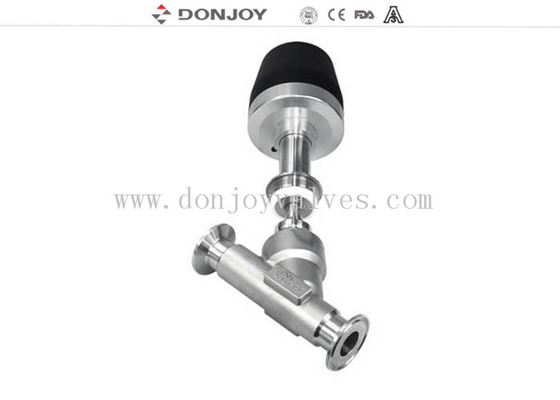

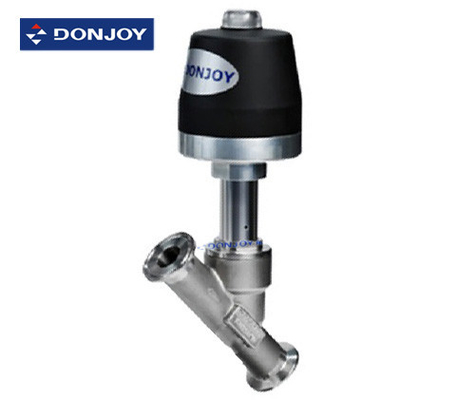

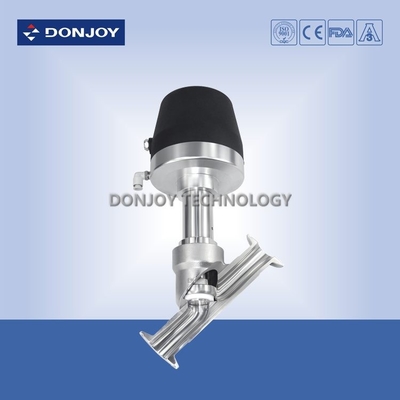

No Dead leg Angle Seat Valves with Ferrule Connection According ASME BPE

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ100Q2
Jumlah Pesanan Minimum:	Negotiation
harga:	$100-$500/piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

angle seat valve

Size Of Panel:

DN10-DN801/2"-4"

Operation:

Pneumatic, Control Head,

Material:

ss304/ss316L

Connection:

Welded, Clamped, Thread, Flange

Working temperature:

120℃(standard) 180℃(option)

Function:

pipeline switch

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

No Dead leg Angle Seat Valves with Ferrule Connection According ASME BPE

Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

4. Seal: elastic shaft seal design, embedded spool design.

specifications:

Product Name:	SS316L/SS304 Plastic Pnuematic Angle Seat Valve,no dead angle, ferrule Connection
Valve Body Material:	CF8/304 , CF8M/316L
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN801/2"-4"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic , Control Head
Certificate:	FDA,CE,ISO

Operation Options for Seat Valve

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Configuration feature + C-TOP

Position feedback,Can be viewed on(Green) and off(Red)

Built-in Solenoid valve

Press button design (convenient to calibrate)

Press with PLC system to automaticauy control

Power:DC 24V

Competitive goal:

Donjoy 's vision is to become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent qualiy.

No Dead leg Angle Seat Valves with Ferrule Connection According ASME BPE 0

Tag: Donjoy sanitary valves, Seat valves, Angle seat valve
