ss316L BSP Thread Pneumatic Angle Seat Valve with Mini- C-Top

Nama Merek:	DONJOY
Nomor Model:	NO.VQD100Q2
Jumlah Pesanan Minimum:	Negotiation
harga:	$100-$500/piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

angle seat valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

Pneumatic, Control Head

Media:

304/316L

Connection:

Welded, Clamped, Thread, Flange

Version:

Basic version/AS-1 bus version

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

ss316L BSP Thread Pneumatic Angle Seat Valve with Mini- C-Top

specifications:

Product Name:	SS316 1inch Stainless steel pneumatic Angle Seat Valve with mini- C-TOP ,Thread
Valve Body Material:	CF8M/316L
Seal Material:	EPDM/ PTFE
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN100, 1/2"-4"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Control Head
Certificate:	FDA,CE,ISO

Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3.The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

4. Temperature: maximum temperature up to 200 (depending on the seal type)

5. Seal: elastic shaft seal design, embedded spool design.

Operation Options for Seat Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Features(with mini-C-TOP control unit)

1. Position feedback,Can be viewed on(Green) and off(Red)

2. Built-in Solenoid valve

3. Press button design (convenient to calibrate)

4. Press with PLC system to automaticauy control

5. Power:DC 24V

Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1.Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2.The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

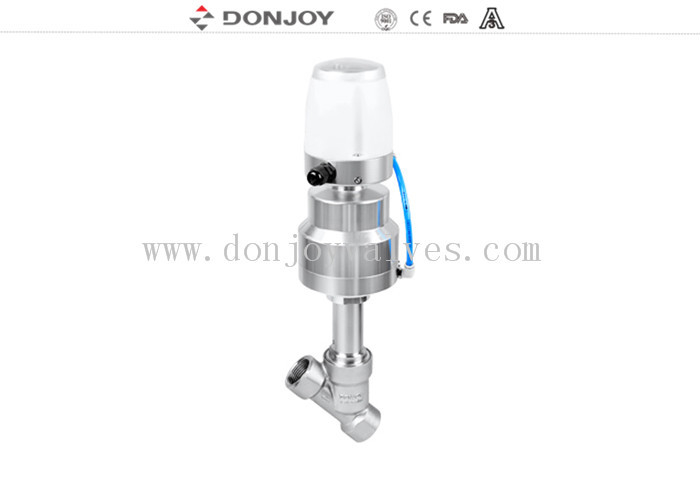

ss316L BSP Thread Pneumatic Angle Seat Valve with Mini- C-Top 0

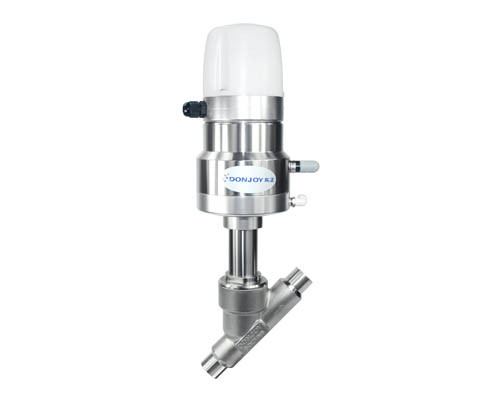

ss316L BSP Thread Pneumatic Angle Seat Valve with Mini- C-Top 1
