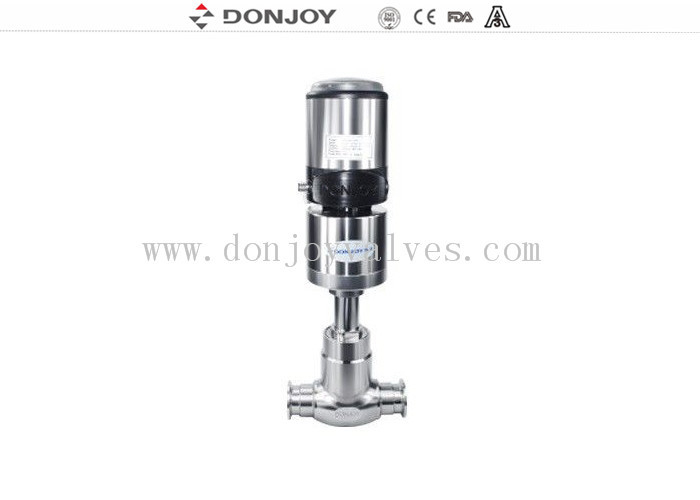

Donjoy Stainless Steel pneuamtic globe valve with tri clamp end

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ223Q2
Jumlah Pesanan Minimum:	Negotiation
harga:	$100-$500/piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Globe valve

Size Of Panel:

2inch

Operation:

Pneumatic, Control Head

Material:

ss304/ss316L

Connection:

Clamp

working temperature:

120℃ （standard）180℃（optional）

Structure:

with positioner

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

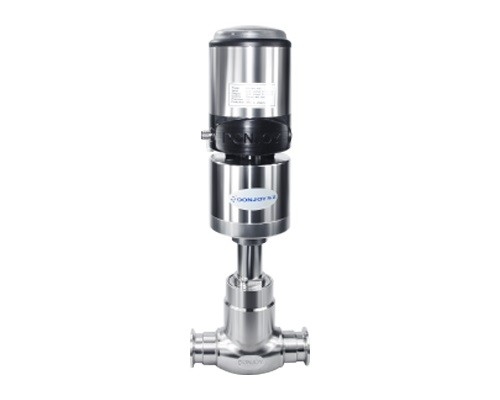

Donjoy Stainless Steel pneuamtic globe valve with tri clamp end

Detail:

Globe Valve+positioner

Connection: Clamped, Thread, Welding,Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Feature

1. Air pressure: 4-7 bar

2. Power Supply: DC24V

3. Signal Feedback: 0 / 4-20mA,0-5 / 10V

4. Compatible DEVICE NET BUS

specifications:

Product Name:	2inch Stainless steel pneumatic globe valve+positioner, high purty adjust globe valve ,clamped
Valve Body Material:	CF8M/316L
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN100,1/2"-4"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic , Control Head
Certificate:	FDA,CE,ISO

Operation Options for Globe Valve

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

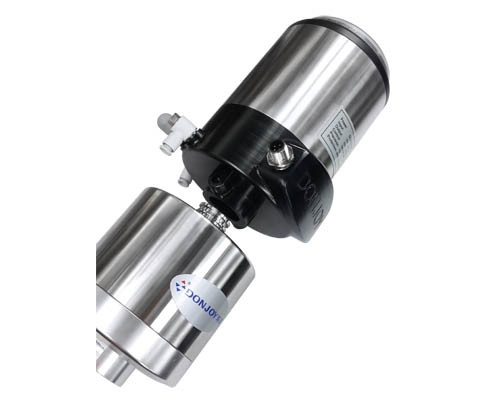

Stainless steel actuator

1. Manual and pneumatic interchangeable

2. Equipped with valve positioner: 0 / 5-20mA, 0-5 / 10V signal input (standard)

3. 0 / 4-20mA, 0-5 / 10v signal output(option)

4. DEVICE NET bus communication(option), detailed information of locator to locator parameters.

Applications:

Globe Valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Donjoy Stainless Steel pneuamtic globe valve with tri clamp end 0
