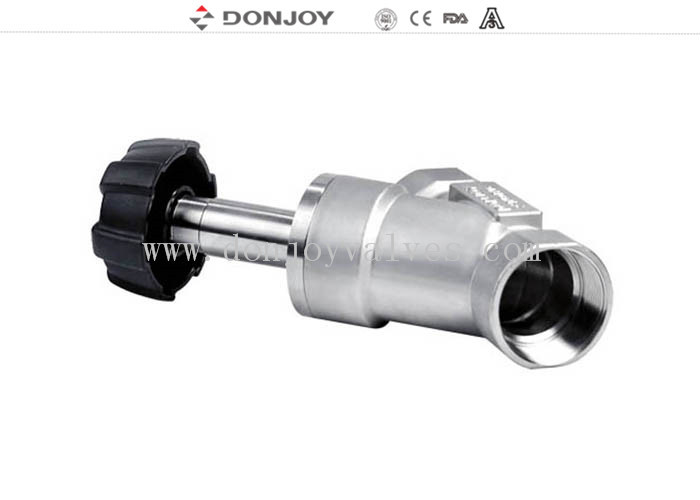

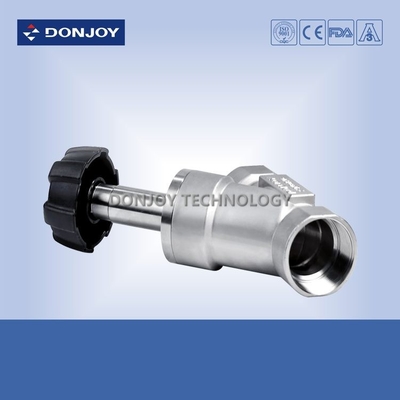

SS316L 2" Plastic Handle Angle Seat Valve , Steam Angle Valve With Clamp Connection

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ140S1
Jumlah Pesanan Minimum:	Negotiation
harga:	$100-$500/piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Angle seat valve

Size Of Panel:

DN10-DN100,1/2"-4"

Operation:

Manual

Material:

CF8/304,CF8M/136

Connection:

Welded, Clamped, Thread, Flange

Origin:

Wenzhou, China

Menyoroti:

angle seated valves

slanted seat valve

Deskripsi produk

SS316L 2" Plastic Handle Angle Seat Valve , Steam Angle Valve With Clamp Connection

specifications:

Product Name:	SS316L /SS304 2" Plastic Handle Angle Seat Valve,Steam Valve with clamp connection
Valve Body Material:	CF8M/316L
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN100,1/2"-4"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Manual
Certificate:	FDA,CE,ISO

More products :

http://www.maoyt.com/test/donjoyvalves.com/sale-7643399-chocolate-and-flow-control-tul-30-bare-shaft-lobe-rotary-pump-with-flush-seal.html

Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

4. Temperature: maximum temperature up to 200 (depending on the seal type)

5. Seal: elastic shaft seal design, embedded spool design.

Operation Options for Seat Valve

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

Target of competition

Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.

SS316L 2" Plastic Handle Angle Seat Valve , Steam Angle Valve With Clamp Connection 0

Tag : Shut off valve, Angle seat valve, Sanitary Donjoy Valve
