1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP

Nama Merek:	DONJOY
Jumlah Pesanan Minimum:	Negotiation
harga:	US $200 - 1,200 / Piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Material:

SS316

Operation:

Pneumatic + Control head

Power of Control Head:

DC24V

Brand:

Donjoy

Working Pressure:

7 Bar

Max Tem:

120 Degree

Supply Ability:

1000 Piece/Pieces per Month

Menyoroti:

diaphragm actuator valve

pressure release valve

Deskripsi produk

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP

Quick detail
Pneumatic reversing seat valve,
divert seat valve,
regulating reversing valve

Specification

Product	1" - 4" 304 316 pneumatic diaphragm type reversing seat valve with double seats
Valve Body Material:	SS304 316L
Seal Material:	EPDM (standard) / VITION / HNBR , compy with FDA177.2600
Working Pressure:	10bar, 20bar(optional)
Max.Working Temperature:	130 °C
Available size:	DN25 - DN100 or 1" - 4"
Available connection:	Clamp / welding / thread /nut / flange
Available standard:	3A / DIN / SMS / RJT / ISO / IDF /BS4825
Operated:	Pneumatic
Structure	Pneumatic diaphragm type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic etc
Feature:	Can resist water hammer
Position of positioner:	Be installed on sideway.

Feature
The material connected with media: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: HNBR / VITION
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc

Product advantage
Positioner can be installed on sideway
Can resist water hammer
Can bear higher presure

Valve body:

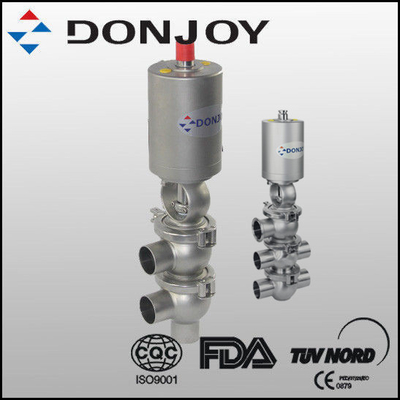

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP 0

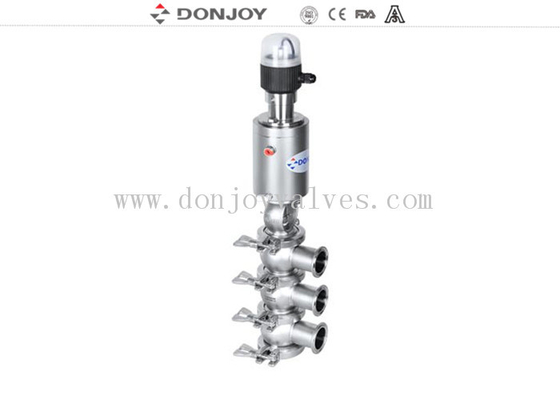

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP 1
