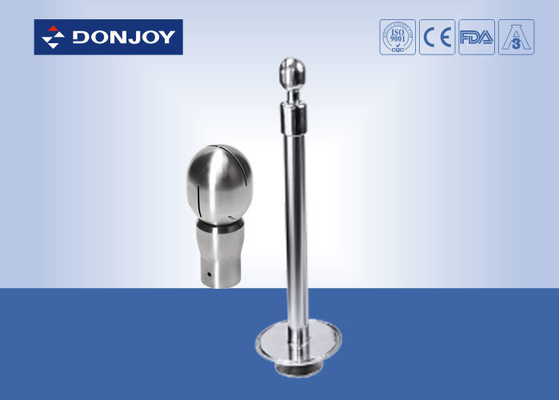

SS316L Sanitary Stainless Steel Rotary CIP Spray Ball 2" Clamp round ball

Nama Merek:	DONJOY
Jumlah Pesanan Minimum:	Negotiation
harga:	$10 per piece
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1/2"-3"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread,pin connection

Polished:

Mirror, Matt

Material:

Stainless steel

Supply Ability:

3000 pcs per month

Menyoroti:

stainless steel spray ball

spray ball for tank cleaning

Deskripsi produk

SS316L Sanitary Stainless Steel Rotary CIP Spray Ball 2" Clamp round ball

Quick Detail

Cleaning Ball

Type: 360 Degree, 180 Degree, 270 Degree

Connection: Clamped

Materials: SS304(1.4304),SS316L(1.4401),

Specification

Product Name:	SS316L, 2" Clamped Elliptical ball cleaner, Spary tank cleaning Ball
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Available size:	1"-2.5"
Connection way:	thread BSP,clamp Pin, Welded
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing is carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Typical Application

1.Fixedinstallaiton CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding

Operating Principle

1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self cleaning function, internal is completely cleaning.

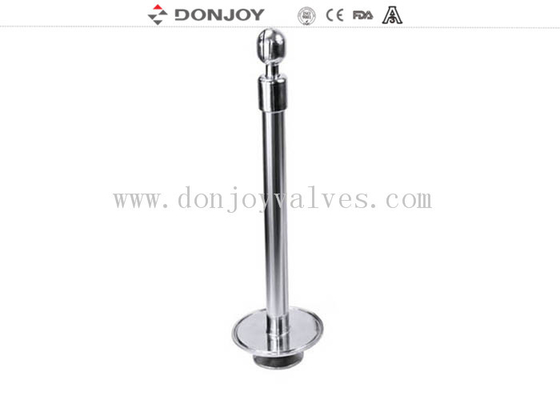

Rotary Cleaning BALL ( CLAMPED) Long Type

SS316L Sanitary Stainless Steel Rotary CIP Spray Ball 2" Clamp round ball 0

Q	SIZE	OD	T	TD	2Bar
Q	SIZE	OD	T	TD	Spray Radius(M)	Cleaning Radius(m)	Flow Rat(m³/H)
28	1/2”	12.7	25.4	77.5	2.5	1.1	2.5
45	1”	25.4	50.5	77.5	3.4	2.5	6.5
65	1.5”	38.1	50.5	91	4.2	3.1	15
75	2”	50.8	64	106	6.5	4.2	22

Tag:

bola semprot baja tahan karat

bola semprot untuk pembersihan tangki

stainless steel spray ball
