Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator

Nama Merek:	DONJOY
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Feature:

Signal indicator (optional)

Operation:

By pneumatic power

Item:

Pneumatic ball valve with controller

Size:

1/2" - 4"

Temperature:

-30℃ - 150 ℃ （180℃ optional）

Function:

For regulating valve

Design:

Ultra-low torque

Supply Ability:

100pcs per day

Menyoroti:

ball valve diaphragm

diaphragm actuator valve

Deskripsi produk

Stainless steel pneumatic ball valve for regulating valve with controller/signal indicator

Quick Detail
Size:1/2"-4", DN10-DN100
Structure: Ball type
Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404
Standard: DIN, SMS, 3A, ISO, RJT etc.
Connection: Welding, Clamp, Thread, Flange etc.
Flow pattern: Directly
Seat material: PTFE
Operating type: Manual, Pneumatic, Control Head, Positioner...

Specification

Product Name:	Stainless steel Pneumatic direct ball valve with Clamped Connection
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Working Pressure:	10Bar
Temperature:	- 30 ℃ - 150 ℃ (180℃ optional)
Available size:	DN10-DN100 or 1/2" - 4"
Available connection:	Weld,Clamp,Thread, Flange
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Controller:	IL-TOP / C-TOP / FKQ-TOP etc.
Signal indicator box:	Optional

Design
1. Free of Maintenances
2. compact and portable
3. small operating torque
4. gasket complies with PTFE FDA 177.2600
5. Hand lever can be installed on the side of the valve body, no matter of the flow direction.
6. It can be installed with pneumatic and electric actuators.
7. With cleaning and drainage port

Feature
Controller: IL-TOP / C-TOP / FKQ-TOP etc.
Signal indicator box: Optional

Display

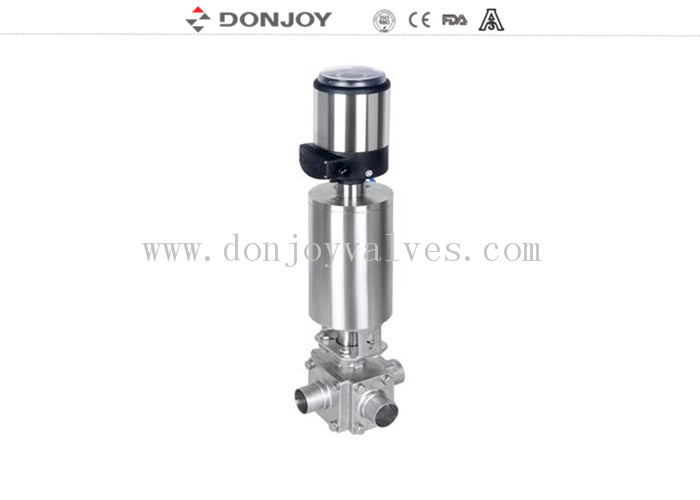

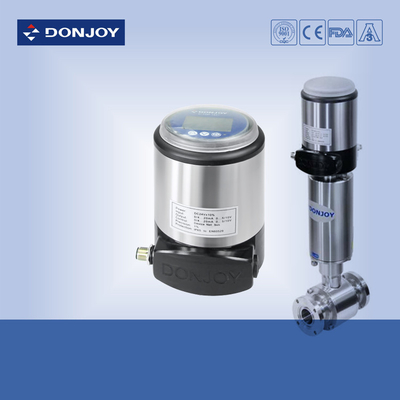

Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator 0

Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator 1

Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator 2
