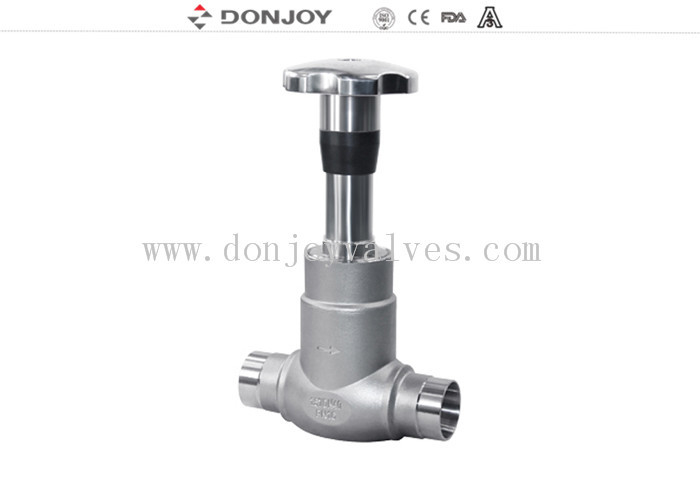

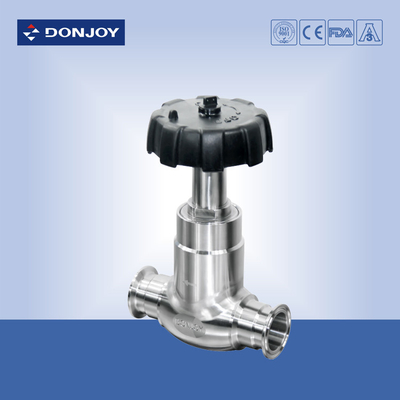

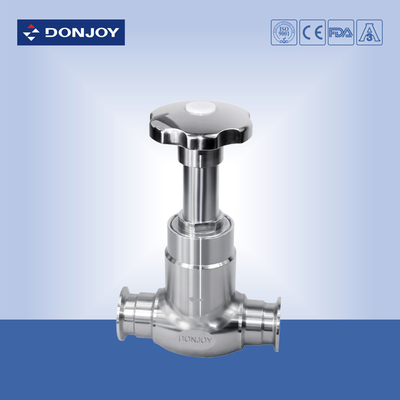

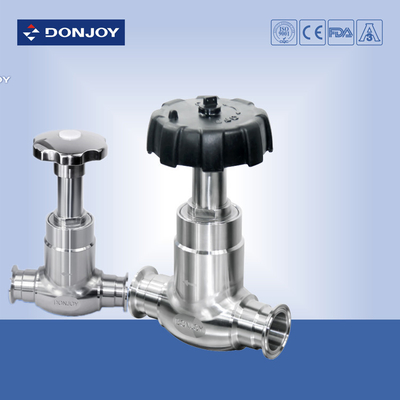

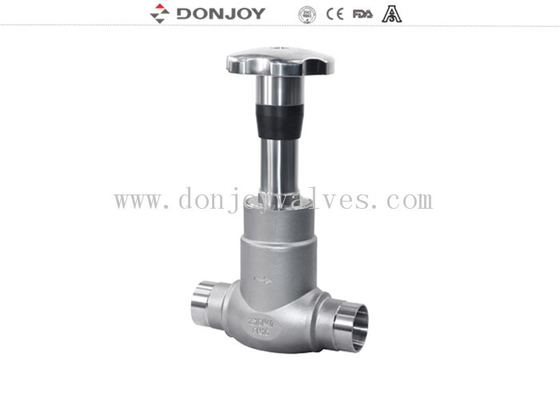

1/2" - 3" Direct Way Manually Clamped Stainless Steel Valves With SS Handwheel

Nama Merek:	DONJOY
Nomor Model:	NO.VJZ200S1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Size:

1/2"-3", DN15-DN65

Appliaction:

printing, dyeing, bleaching food, washing, chemical, etc.

Connect way:

Clamp, Flange, Thread,, BSP, BSPT, NPT. DIN

Working pressure:

8 bar(standard) 10 bar(option)

Manual Operating mode:

plastic handwheel, stainless steel wheel, fine-tuning handwheel

Working temperature:

120 degree(standard) 180 degree( option)

Port:

direct-way

Menyoroti:

angle body valve

slanted seat valve

Deskripsi produk

1/2"-3" Direct-way Manually Clamped Globe Valve with Stainless steel Handwheel

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

specifications:

Product Name:	304(CF8) 1/2"-3" Direct-way Manually Clamped Globe Valve with Plastic Handwheel
Valve Body Material:	CF8M/316L,CF8/304
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Manula, Control Head
Certificate:	FDA,CE,ISO

Detail:

High purity adjust globe valve

1. Connection: Clamped, Thread, Welding,Flange

2. Standard: DIN,3A,SMS,ISO,IDF, RJT..

3. Working pressure: 8bar(standard) 10bar(option)

4. Working temperature: 120℃ (standard) 180℃ (option)

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

1/2" - 3" Direct Way Manually Clamped Stainless Steel Valves With SS Handwheel 0

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

Drawing

Curve of globe valve

1/2" - 3" Direct Way Manually Clamped Stainless Steel Valves With SS Handwheel 2

Tag : Sanitary Valve. Steam Valve, Globe valve
