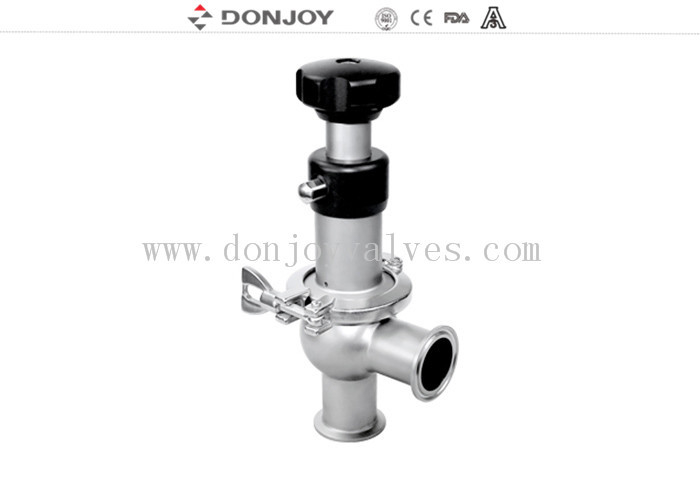

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150

Nama Merek:	DONJOY
Nomor Model:	NO.1107008
Jumlah Pesanan Minimum:	Negotiation
harga:	US $150 - 1,200 / Piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Material:

SS304 / 316

Connection:

Clamp, weld, SMS Thread Union

Operate Mode:

Manual

Size:

DN25 - DN150

Type:

20,21,22

Item name:

Sanitary reversing valve of manual operation

Structure:

Rotary handle or fine tuning handwheel is optional

Body:

Single seat

Supply Ability:

1000 Piece/Pieces per Month

Menyoroti:

ball valve diaphragm

pressure release valve

Deskripsi produk

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150

Tag
donjoy sanitary reversing valve
Manual Flow control Valve
DONJOY Seat Valve

Specification

Product Name	Sanitary manual reversing Seat valve,SMS,DIN,INCH..
Valve body material	SS304 or SS316L
Seal material	EPDM / FPM / VITON
Max.working pressure	10 bar
Max.working temperature	130°C
Size	DN25 - DN100 or 1" - 4"
Connection	Threaded, welded, clamped,Flange
Standard	DIN, SMS, RJT, 3A
Operating mode	Manual, Pneumatic,IL Tope, Positioner
Certificate	FDA, CE, ISO,3A
Whole structure	Reversing valve, rotary handle, position safety lock, leak detecting hole and clamp
Adjust	360° adjustable body
Hygienic Design	According to 3A Standard
Assembly	Easy assembly, disassembly of internal parts by loosening a clamp fastener
manual operation	By fine tuning handwheel

Operating Principles
Seat valve are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in the "open" or "closed" position.

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Product drawings

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150 0
