Kaca penglihatan baja tahan karat

Sanitary Sight Glass Aseptic Zero Dead Conner Stainless Steel Sight Glass With Protective Sleeve

Semua Kategori

Kaca penglihatan baja tahan karat

Fitting Sanitasi Baja Tahan Karat

Hubungi Kami

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Hubungi Sekarang

Sanitary Sight Glass Aseptic Zero Dead Conner Stainless Steel Sight Glass With Protective Sleeve

Nama Merek:	DONJOY
Nomor Model:	NO.
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Outer material:

Stainless steel

SIZE:

1" - 4", DN25 - DN100

Stanadard:

DIN, 3A, SMS, ISO

Connection:

Welded, Clamped, Thread, Flange

Polished:

Mirror, Matt

Standard:

IDF, BS, RJT, SMS, DIN

Glass Material:

Tempered glass

Applicable industry:

For cosmetics, pharmaceutical and fine chemical etc

Menyoroti:

sanitary sight glass

SS Sight Glass

Deskripsi produk

Sanitary sight glass aseptic zero dead conner with protective sleeve

Quick Detail

Aseptic no dead conner Sight Glass

Size:1" - 4", DN25 - DN100

Gasket: EPDM,PTFE

Working Pressure: 10 Bar

Specification

Product Name:	Sanitary level aseptic zero dead conner sight glass with protective sleeve for 360° observation
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	120 degree
Working pressure	5 to 10 bar depending on sight glass
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Outer design:	With protective cover
Installation:	Could be installed on any side
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
The tempered tubular sight-glass is comprised of stainless steel frame and glass.Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries

Design and feature
Full bore Design
360 degree viewing angle
Can be used in vertical or horizontal position
Gasket material is in accordance with FDA 177.2600
Could be with light and wipper.

Drawing

Sanitary Sight Glass Aseptic Zero Dead Conner Stainless Steel Sight Glass With Protective Sleeve 0

Display

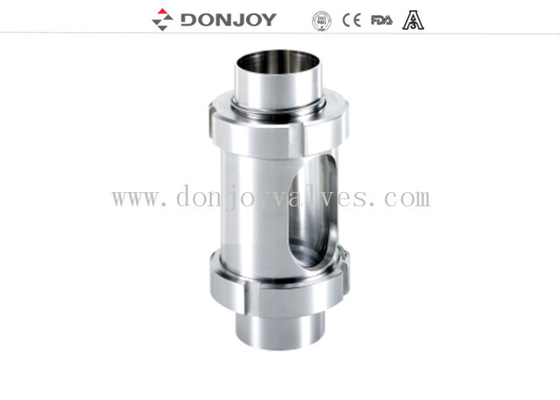

Sanitary Sight Glass Aseptic Zero Dead Conner Stainless Steel Sight Glass With Protective Sleeve 2
