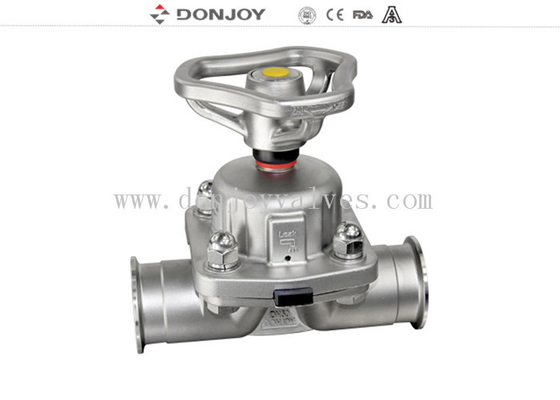

Stainless Steel Manual Sanitary Diaphragm Valve With FDA Membrane One Year Warranty

Nama Merek:	Donjoy
Nomor Model:	CGMOS1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane

Suitable temperature:

-10 to 120 degree (EPDM)

Operation:

Stainless steel handwheel

Gasket optional:

EPDM/ SILICONE/ FPM

Surface polishing:

Ra<0.8um

Material:

Stainless Steel

Supply Ability:

30 sets 20 working dyas

Menyoroti:

diaphragm check valve

sanitary sample valve

Deskripsi produk

One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane

Specifications

Product Name:	One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	10 Bar
Max.Working Temperature:	150 degree C
Availably size:	1”-4”, DN20-DN100
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF

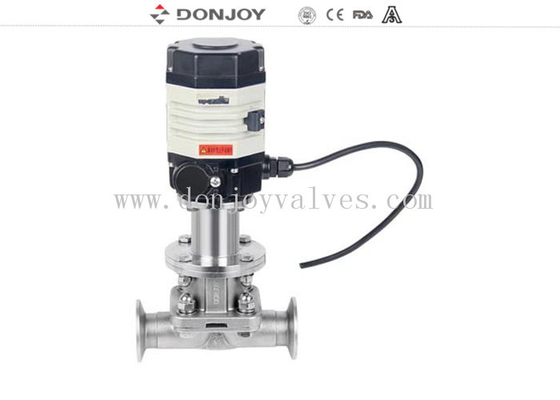

Operated:	Manual/Pneumatic/Electronic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Leading design:	Dead conner ＜ 3D
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
