Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ400N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE / FDA/ ISO / 3A

Name:

four-way sight glass

SIZE:

DN25 - DN100

Stanadard:

DIN, 3A, SMS, ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Temperaure:

-10 degree to 150 degree

Structure:

Four way sight glass

Power:

Cable power or wireless power is optional

Supply Ability:

500pcs per month

Menyoroti:

sanitary stainless steel sight glass

FPM Stainless Steel Sight Glass

DN25 Stainless Steel Sight Glass

Deskripsi produk

Sanitary stainless steel and tempered glass four-way sight glass zero dead angle no-retention

Quick Detail

No retention four-way Sight Glass

Size:DN25-DN100,1"-4"

Gasket: EPDM, NBR,FPM

Working Pressure:10Bar

Specification

Product Name:	Hygenic Four way sight glass
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,NBR, FPM
Sight glass:	tempered glass
Max.temperature:	-10 to 150 degree
Battery:	rechargeable battery(220V Battery for 18650); can use AC220V/110V power supply lighting.
Available connection:	Clamp, Thread, weld, DIN,SMS, IDF
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Structure:	Four-way sanitary sight glass
Power:	Cable power or wireless power is optional

Drawing

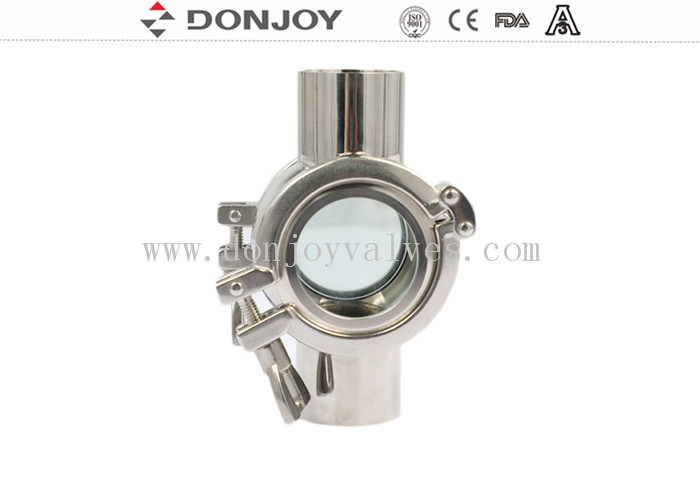

Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass 0

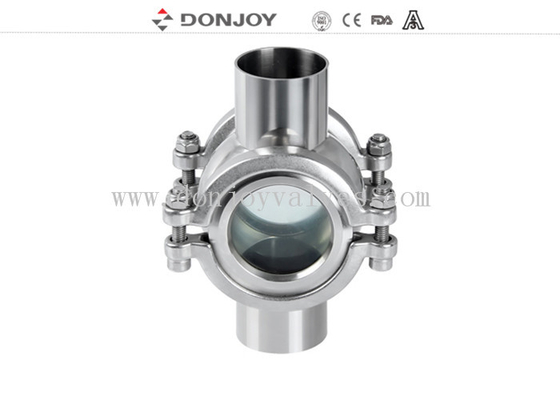

Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass 1

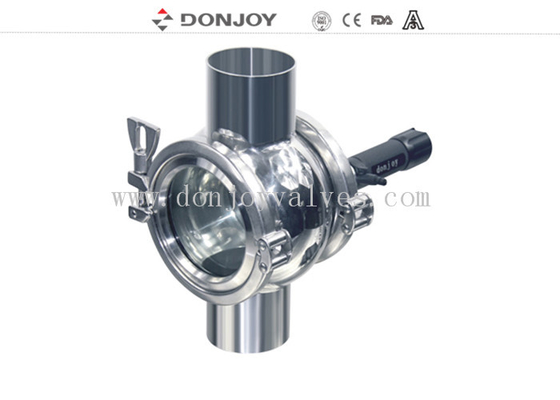

Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass 2

Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass 3

Application
The no retention four-way sight-glass is comprised of stainless steel frame and glass. Through it, the operator can observe the flowing of the liquid substance clearly and precisely in the fields of flood, cosmetic, pharmaceutical and fine chemicals industries

Technical Feature
All available size can be installed on the equipment through clamps
No retention, zero dead angle, high light, white cold light source, waterproof, explosion-proof. Cable power supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)
Rechargeable battery type, connection cable type with a stainless steel shell, DC 24V

Product display

Zero Dead Angle No Retention Sanitary Stainless Steel Sight Glass 4
