Tank Hygienic Pharmaceutical Stainless Steel Sight Glass

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ100N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

Tubular sight glass

SIZE:

DN25-DN300,1"-12"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Material:

AISI 304(1.4301) AISI 316L(1.4404)

Supply Ability:

4000pcs per month

Menyoroti:

DN300 Stainless Steel Sight Glass

SMS Stainless Steel Sight Glass

pharmaceutical stainless steel sight glass

Deskripsi produk

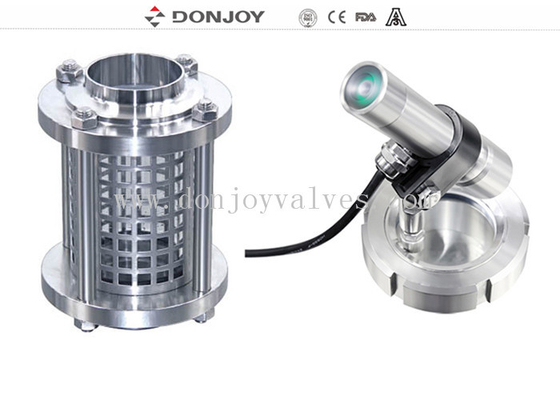

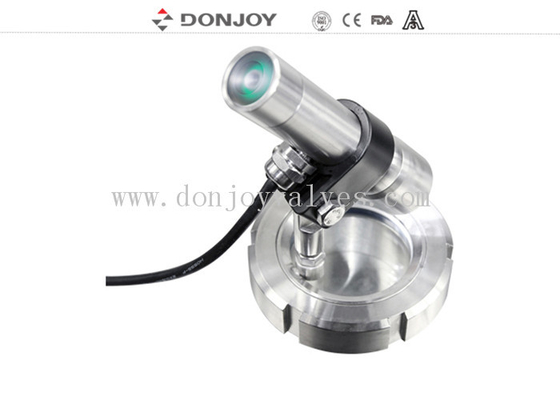

DONJOY high quality hot selling tank hygienic stainless steel sight glass with light DC24V for pharmaceutical

Quick Detail

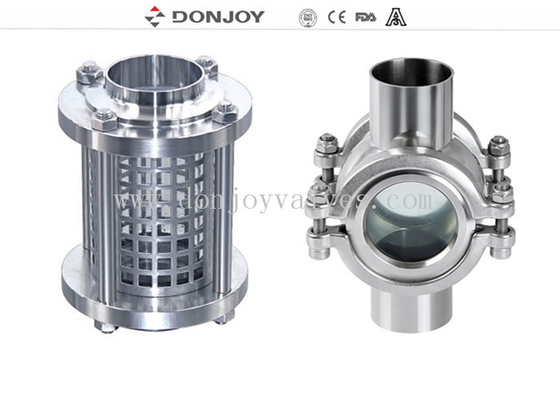

Tubular Sight Glass, Straight Sight Glass, Four Way Sight Glass,Union sight glass with light

Size:DN10-DN300/0.5"-12"

Gasket: EPDM, NBR, FPDM

Working Pressure:10Bar

Specification

Product	Inline sight glass
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,NBR,FPM
Sight glass:	tempered glass Borosilicate
Max.temperature:	-10 to 120 degree
Battery:	No
Available connection:	Clamp, Thread, weld, DIN, SMS, IDF
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customized. Or as per the request of customers
Delivery details:	10-20 days

Drawing

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 0

INCH

Size	H	D	D1	DN
1/2"	140	78	12.7	9.4
3/4"	140	78	19.1	15.8
1"	140	78	25.4	22.4
1 1/4"	140	78	31.8	28.8
1 1/2"	140	86	38.1	35.1
2"	142	102	50.8	47.8
2 /12"	146	115	63.5	59.5
3"	146	124	76.2	72.2
3 1/2"	150	139	89	85
4"	156	154	101.6	97.6
5"	170	185	133	127
6"	180	215	147	153

DIN

Size	H	D	D1	DN
DN10	140	78	13	10
DN15	140	78	18	15
DN20	140	78	22	19
DN25	140	78	28	25
DN32	140	86	34	31
DN40	140	90	40	37
DN50	142	102	52	49
DN65	146	124	70	66
DN80	150	139	85	81
DN100	156	154	104	100
DN125	170	185	129	125
DN150	180	215	154	150

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 1

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 2

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 3

Application
Straight sight glass and Four way sight glass is comprised of a stainless steel frame and tempered glass. Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food, cosmetics, pharmaceutical and fine chemical industries.
Size from 1"-12" to DN25--DN300 the glass can be installed on the equipment through clamps.

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 4

Tank Hygienic Pharmaceutical Stainless Steel Sight Glass 5
