2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ110N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Material:

SS316L/SS304

SIZE:

1/2" inch - 6 inch

Stanadard:

DIN, 3A, SMS, ISO

Connection:

Welded, Clamped, Thread, Flange

Polishing:

Mirror polishing, Matt polishing

Surface treatment:

Operated by CNC lathe

Feature:

With stainless steel protective cover

Menyoroti:

SS304 Sleeve Tubular Sight Glass

ISO Tubular Sight Glass

CNC Lathe Tubular Sight Glass

Deskripsi produk

2" Tri clamp Tubular stainless steel sight glass with SS304 protective sleeve

Quick Detail

Sight glass, Tube sight glass

Size:1/2"-6" ,DN10- DN150

Type: Manual operation

Gasket: EPDM /NBR, FPME according FDA 177.1600

Max pressure :10bar

Max Temperature:-10°C to 120°C

Assemble flange with glass by using hexagon socket boltes

Glass: Tempered glass

Protective sleeve: AISI304

Surface Treatment: CNS Lathe

Specification

Product Name:	2" Tri clamp Tubular stainless steel sight glass with SS304 protective sleeve
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,FPM,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 120 degree
Gasket	NBR, EPDM, FPM in accordance with FDA 177.2600
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certification:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Feature:	For full angle observation
Advantage:	Precise observation on flow
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
A tubular sight glass is comprised of stianless steel fram and glass, through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of foods, comestic, pharmaceutical and fine chemicals industries.

Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

Drawing of sight glass

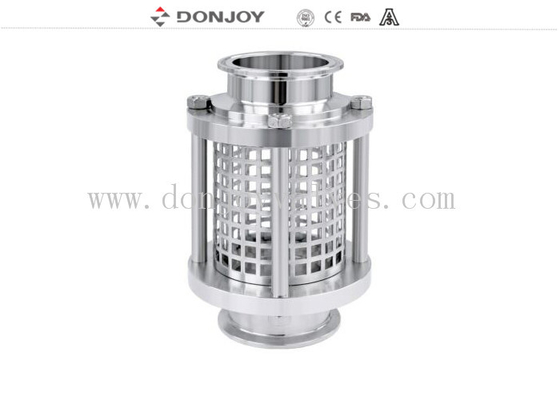

2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve 0

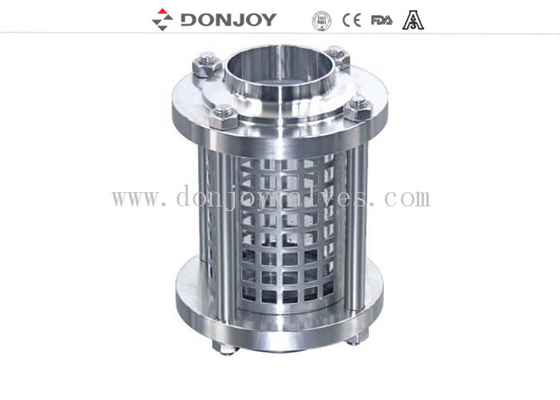

2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve 1

Packaging
Plywood case or customerized.
Or as per the request of customer

Delivery
Normally, 10-20 days
