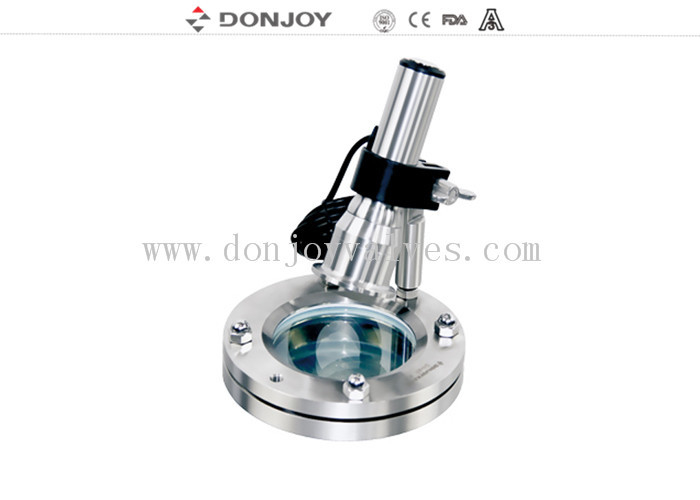

Flange Sight Glasses With DC 24V Multi Angle Light

Nama Merek:	DONJOY
Nomor Model:	DN40-DN300
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Material:

AISI 304 (1.4301) AISI 316L (1.4404)

SIZE:

1.5"-12" to DN40-DN300

Stanadard:

DIN, 3A, SMS, ISO

Connection:

thread, clamp, welding, DIN, SMS, IDF

Polishing:

Mirror polishing, Matt polishing

Surface treatment:

Operated by CNC lathe

Feature:

With stainless steel protective cover

Menyoroti:

DN40 Stainless Steel Sight Glass

Multi Angle Light SS Sight Glass

DC 24V Stainless Steel Sight Glass

Deskripsi produk

Flange sight glasses with DC 24V Multi-angle light

Quick Detail
Sight glass, Flange sight glass

Size: 1.5"-12" to DN40-DN300

Gasket: EPDM NBR in accordance withFDA177.2600

Max Temperature: -10°C-130°C
Assemble flange with thread, clamp, welding, DIN, SMS, IDF
Glass: The glass with bracket can rotate at any angle or increase or decrease the height to meet various lighting need
Protective sleeve: AISI304
Surface Treatment: CNS Lathe

Specification

Product Name:	Flange sight glasses with DC 24V Multi-angle light
Material:	AISI 304 (1.4301) AISI 316L (1.4404)
Seal Material:	EPDM NBR meets FDA177.2600
Sight glass:	tempered glass
Max.temperature:	-10°C-130°C
Gasket	EPDM NBR in accordance withFDA177.2600
Available connection:	thread, clamp, welding, DIN, SMS, IDF
Available standard:	DIN, SMS, 3A, ISO
Certification:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Feature:	All stainless steel mirror lamp DC24V power supply
Advantage:	No retention, zero dead angle, high light, white cold light source,waterproof, explosion-proof
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
Flanged sight glass is comprised of stainless steel frame and tempered glass. Through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmetics,pharmaceutical and fine chemicals industries.
Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

Drawing of sight glass

Flange Sight Glasses With DC 24V Multi Angle Light 0

Packaging
Plywood case or customerized.
Or as per the request of customer
Delivery
Normally, 10-20 days

Sight glass , Sanitary sight glass, Donjoy sight glass
