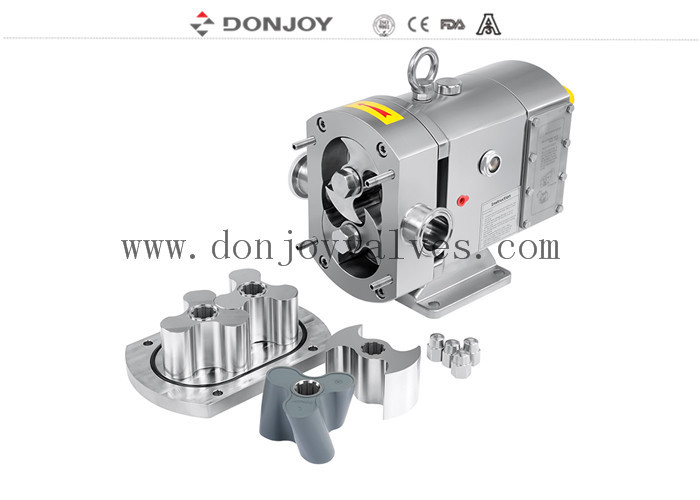

Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump

Nama Merek:	DONJOY
Nomor Model:	STUL/R
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Materials:

SS316L / 1.4404

Model:

STUL/R

Driver:

Electric

Connection:

Clamped/ Male/Flange

Flow Rate:

6.5-13T/h

Item name:

Mechanical variable lobe pump

Supply Ability:

20 sets 30 working days

Menyoroti:

Donjoy Rotary Lobe Pump

Rotary Lobe Pump

Butterfly rotors Rotary Lobe Pump

Deskripsi produk

Donjoy Lobe pump with Butterfly rotors/ Rotary lobe pump

Specifications

Product Name:	Bare shaft Lobe pump
Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	SIC / SIC / EPDM (Standard, FDA approval)
Max. Flow:	62m3/h / 395 GPM
Max.pressure:	12bar / 174PSI
Max. working temperature:	150 C / 302 F
Max. rev:	1450 rmp
Rotor Type:	2-leaves, 3-leaves, butterfly, signal butterfly
Mechanical seal:	SIC / SiC / EPDM(Standard)
Motor power:	1.5kw, 2.2kw, 3kw….15kw
Feature	Movable
Voltage:	220V, 380V, 440V
Motor:	ABB,SEW, SIEMENS
Surface treatment:	Inner polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO / IDF
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details:	Normally within 20 days after receiving T/T down payment.

What different of STUL/R and TUL/R

Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump 0

Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Mechanical seal Option
Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump 1

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

Lobe assembling Clearence Tabe

Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump 2

Pump connection

Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump 3

Model Selection Table

PUMP OPTION

Pump Curve

Donjoy Lobe Pump With Butterfly Rotors / Rotary Lobe Pump 8
NNEED MORE INFORMATION, PLEASE CONTACT DONJOY
