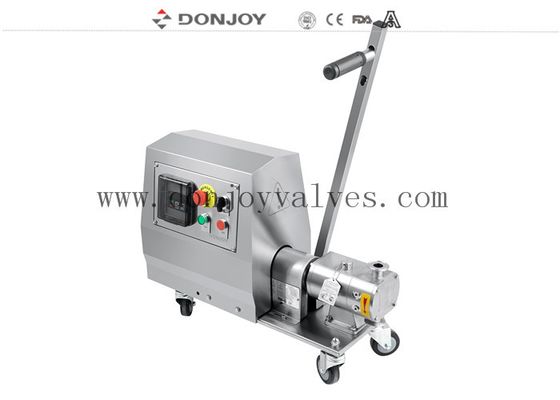

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

Nama Merek:	DONJOY
Nomor Model:	STUL/R-10
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	Wooden box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Materials:

SS316L / 1.4404

Model:

STUL/R

Driver:

Electric

Connection:

Clamped/ Male/Flange

Flow Rate:

6.5-13T/h

Item name:

Mechanical variable lobe pump

Supply Ability:

20 sets 30 working days

Menyoroti:

Mini Lobe pump

DONJOY Mini Lobe pump

freqency motor Mini Lobe pump

Deskripsi produk

DONJOY STUL-10 Mini Lobe pump with freqency motor

Specifications

Product Name:	Bare shaft Mini Lobe pump
Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	SIC / SIC / VITON (Standard, FDA approval)
Max. Flow:	1.5m3/h
Max.pressure:	15bar / 217PSI
Max. working temperature:	150 C / 302 F
Max. rev:	1450 rmp
Rotor Type:	3-leaves,5 Leaves
Mechanical seal:	SIC / SiC / Viton(Standard)
Motor power:	1.5kw, 1.1KW
Feature	Movable
Voltage:	220V, 380V /440V
Motor:	ABB,SEW, SIEMENS
Surface treatment:	Inner polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO / IDF
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details:	Normally within 20 days after receiving T/T down payment.

What different of STUL/R and TUL/R

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 0

Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Mechanical seal Option
DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 1

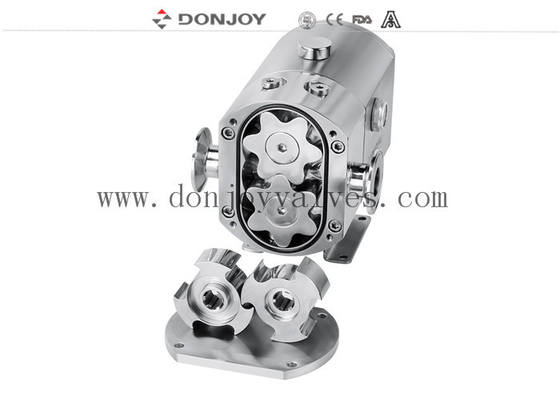

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

Lobe pump technical selection table

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 2

Pump connection

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 3

MINI LOBE PUMP MOTOR

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 4

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 5

Pump Curve

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor 6
NNEED MORE INFORMATION, PLEASE CONTACT DONJOY
