Nama Merek:	DONJOY
Nomor Model:	NO.VSJ300Y1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

DN100 union sight glass

SIZE:

DN25-DN150/1"-6"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Pressure:

vacuum 10 bar

Temperature:

-10 to 80 degree

Operation mode:

Charging mode

Structure:

Union sight glass + lighter + wiper

Menyoroti:

sanitary sight glass

stainless sight glass

Deskripsi produk

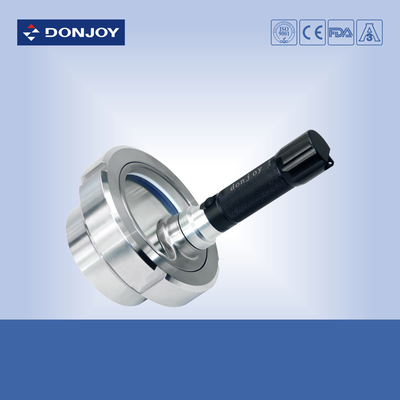

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

Quick Detail

DN150 union Sight Glass

Size:DN25-DN150, 1"-6"

Type: Union Type

Gasket: EPDM,PTFE

Working Pressure:vacuum 10Bar

Material: 304(1.4301), 316L(1.4404)

Specification

Product Name:	Quality DN150 Stainless Steel Union Sight Glass with the dust wiper
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 80 degree
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Operation mode:	Charging mode
Structure:	union sight glass + lighter + wiper

Application

Union-type-sight-glass DIN11851/SMS (Standard fir dairy products), with transparent

circular glass. Threaded nozzle with the welded neck.It is used viewing the biologic reactor, blender in laboratary, filter, processing container, pipeline and other closed container.

Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.

Technical Features

One charge can be used for 2-3 months( depending on frequency of use)

Waterproof, explosion-proof, hygienic design

Various Type

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper 0
