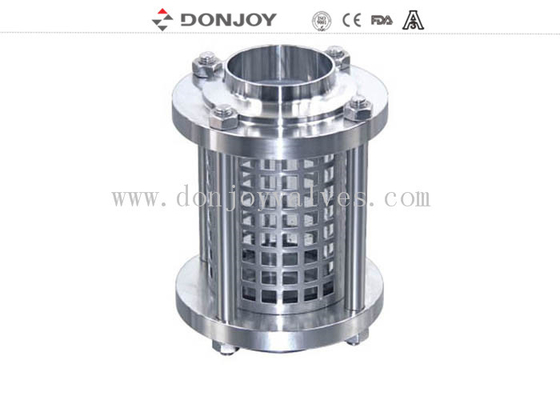

DONJOY stainless steel weld ends sight glass with protective cover DN50

Nama Merek:	DONJOY
Nomor Model:	VSJ110N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

Weld sight glass

SIZE:

DN10-DN150/0.5"-6"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Power supply:

AC110V/220V, DC24V

Menyoroti:

sanitary sight glass

SS Sight Glass

Deskripsi produk

DONJOY stainless steel weld ends sight glass with protective cover DN50

Quick Detail

SS Weld Sight Glass

Size:DN10-DN150/0..5"-6"

Gasket: EPDM, NBR, FPM

Working Pressure:10Bar

Specification

Product Name:	DONJOY stainless steel weld ends sight glass with protective cover DN50
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM, NBR,FPM
Sight glass:	tempered glass
Max.temperature:	-10 TO 150 degree
Battery:	No
Availably connection:	Clamp, Thread, weld
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
SS weld sight glass is comprised of stainless steel frame and tempered glass.Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food,cosmestic, pharmaceutical and fine chemicals industires.

Technical Features:
With stainless steel protective cover
Tempered glass
Gasket:Silicone/VMQ FDA 177.2600
Surface treatment:CNC lathe
Full bore design
360 degree viewing angle
Can be used in vertical or horizontal position

Tag : Tube sight Glass, Inline Sight Glass, Food grade sight Glass
