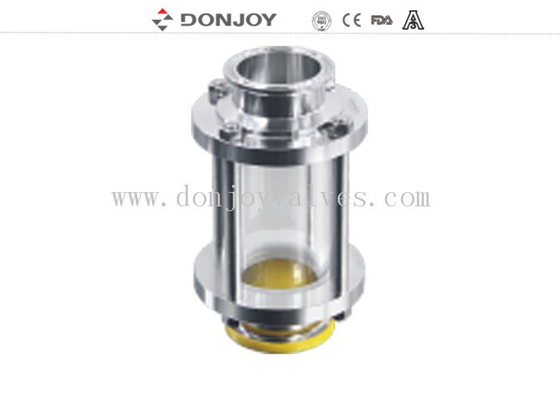

Clamp type SS Inline sight glass with high quality tempered glass 10 bar max

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ400N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

Clamp sight glass

SIZE:

DN10-DN150,0.5"-6"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Material:

AISI 304(1.4301) AISI 316L(1.4404)

Menyoroti:

sanitary sight glass

SS Sight Glass

Deskripsi produk

Clamp type SS Inline sight glass with high quality tempered glass 10 bar max

Quick Detail

Clamp Sight Glass

Size:DN10-DN150/0.5"-6"

Gasket: EPDM, NBR, FPDM

Working Pressure:10Bar

Specification

Product	Clamp type SS Inline sight glass with high quality tempered glass 10 bar max
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,NBR,FPM
Sight glass:	tempered glass
Max.temperature:	-10 to 120 degree
Battery:	No
Availably connection:	Clamp, Thread, weld, DIN, SMS, IDF
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
Clamp sight glass is comprised of stainless steel frame and tempered glass. Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food,cosmestic, pharmaceutical and fine chemicals industires.
Size from 0.5"-6" to DN10--DN150 the glass can be installed on the equipment thoughclamps.

Tag : Sight Glass, Tube Glass, Tri clamp glass
