DONJOY Sight Glass shell multi-angle with explosion-proof design SS 304/316L

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ400N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

ss 316L flange sight glass

SIZE:

DN40-DN2000,1.5"-8"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Gasket:

PTFE, EPDM

Menyoroti:

sanitary sight glass

stainless sight glass

Deskripsi produk

SS Sight Glass shell multi-angle with explosion-proof design

Quick Detail

ss 316L Flange Sight Glass

Size:DN40-DN2000,1.5"-8"

Gasket: EPDM,PTFE

Working Pressure:10Bar

Stainless steel shell DC 24V power supply

Specification

Product Name:	SS 316L stainless steel shell multi-angle flange sight glass with explosion-proof design
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE
Sight glass:	tempered glass
Max.temperature:	-10 to 120 degree
Battery:	use high light flashlight,rechargeable lithium battery(220V Battery
Connection	Flange
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Polywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
SS 316L Stainless Steel Shell Flanged sight glass is comprided of stainless steel frame and glass.Through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmestic, oharmaceutical and fine chemicals industries.

Techical Features:
High light, white cold source/waterproof, explosion-proof design.
Cable power supply AC110V-220V, DC24V Wireless power supply, one charging can be used for 2-3 months (depending on the frequency of use)Assemble flange with glass by using hexagon socket bolts.The max working pressure is 10 bar

Product display

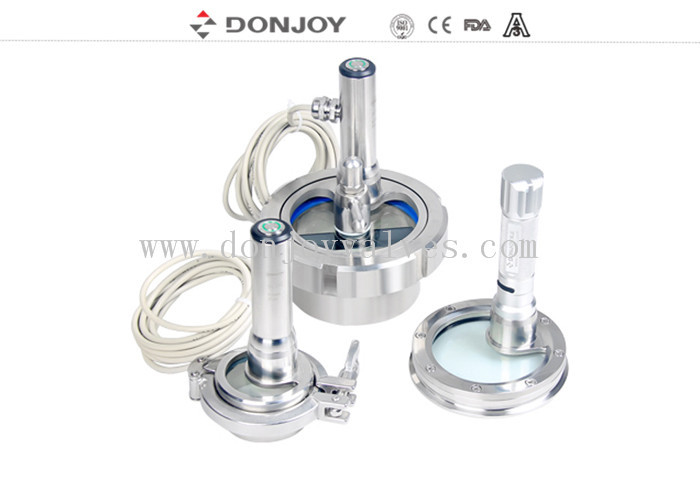

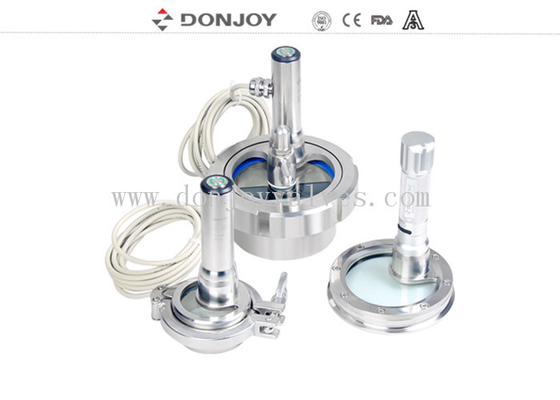

DONJOY Sight Glass shell multi-angle with explosion-proof design SS 304/316L 0
