DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ400N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Name:

Four-way sight glass

SIZE:

DN40-DN100,1.5"-4"

Stanadard:

DIN,3A,SMS,ISO

Connection:

thread, weld, clamp, DIN, SMS, IDF

Polished:

Mirror, Matt

Menyoroti:

SS Sight Glass

stainless sight glass

Deskripsi produk

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable

Quick Detail

Four-way Sight Glass

Size:DN40-DN100,1.5"-4"

Gasket: EPDM,PTFE

Working temperature(basic):-10 to 150 degree

Working temperature(basic with lamp):-10 to 80 degree (depending on light heat resistance)

Specification

Product Name:	Four way sight glass,Zero Dead Angle,Noretention sight glass,Rechargeable
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM, NBR, FPM in accordance with FDA 177.2600
Sight glass:	tempered glass
Max.temperature:	-10 to 150 degree
Battery:	use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.
Availably connection:	Clamp, Thread, weld, DIN, SMS, IDF
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
Four-way sight glass is comprised of stainless steel frame and tempered glass. Through it,operator can observe the flowing of liquid clearly and precisely in the fields of food, cosmestic,pharmaceutical and fine chemicals industires.

Technical Features:
No retention, zero dead angle, high lilght, white cold light source, waterproof, explosion-proof.Cable power supply supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)

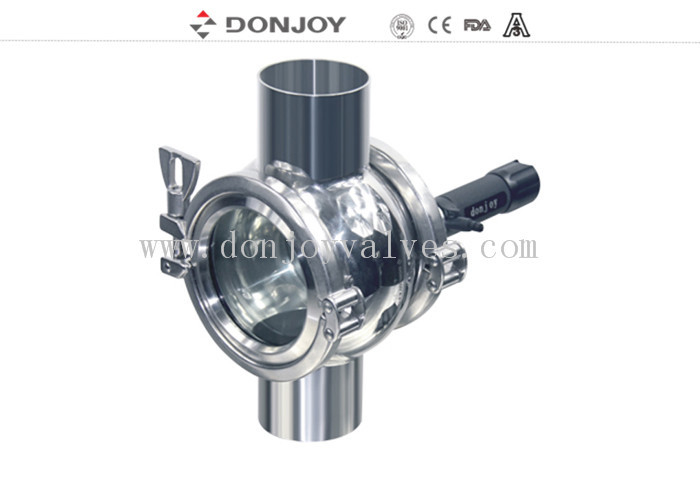

Product drawing

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable 0

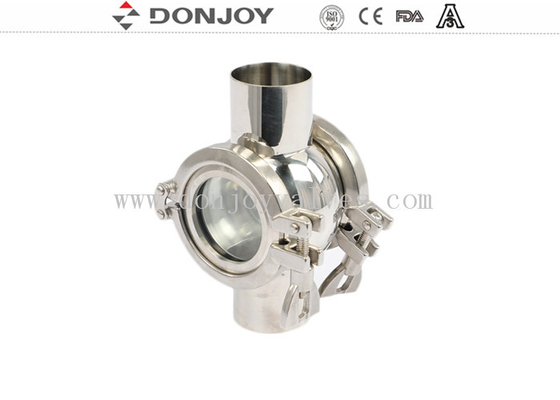

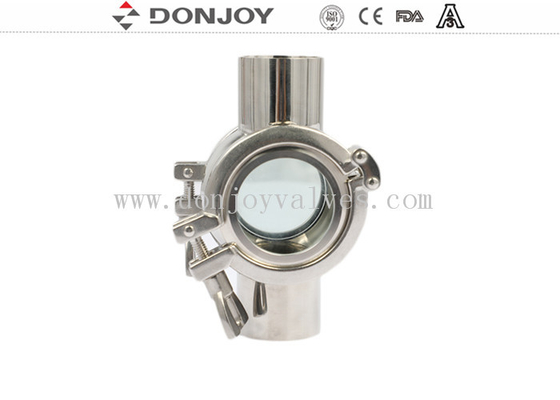

Product display

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable 1
