DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

Nama Merek:	DONJOY
Nomor Model:	NO.VSJ200N1
Jumlah Pesanan Minimum:	Negotiation
Rincian kemasan:	Carton, Wooden Case
Ketentuan Pembayaran:	T/T,L/C, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

DN25-DN150,1"-6"

Stanadard:

DIN, 3A, SMS, ISO

Connection:

Welded, Clamped,Thread

Model:

Basic type

Lighting:

Could be selected

Menyoroti:

sanitary sight glass

SS Sight Glass

Deskripsi produk

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

Specification

Product Name:	DN25 - DN150 basic union type sight glass with tempered glass for medium conveying and observing
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	120 degree
Battery:	use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.
Availably connection:	Clamp, Thread, weld, Flange
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Type:	Basic model
Function:	For medium conveying and observing

Quick Details
Sight Glass
Size:DN25-DN150,1"-6"
Type: DC24V,NO.5 Battery
Gasket: EPDM,PTFE
Working Pressure:10Bar

Application
A tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries

Function
For medium conveying and observing

Structure
Basic structure (lighter is optional)

Feature
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with light and wipper

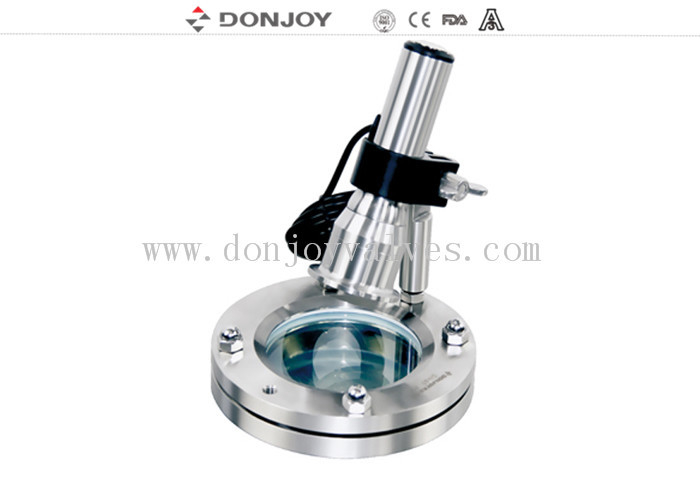

Drawing

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 0

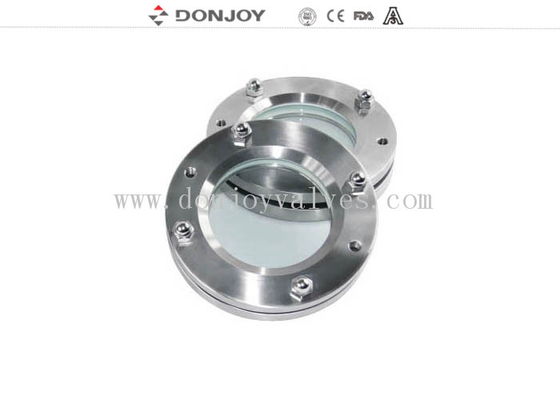

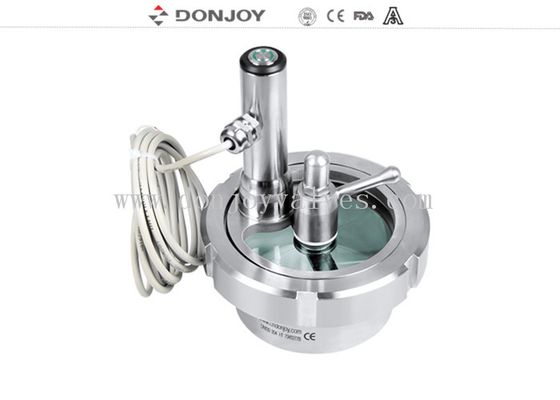

Display

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 1
