Katup Diafragma Sanitasi

Filling Sanitary Diaphragm Valve with Stainless steel actuator

Semua Kategori

Kaca penglihatan baja tahan karat

Fitting Sanitasi Baja Tahan Karat

Hubungi Kami

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Hubungi Sekarang

Filling Sanitary Diaphragm Valve with Stainless steel actuator

Nama Merek:	Donjoy
Nomor Model:	DONJOY-TANK
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Filling diaphragm valve

Materials:

SS316L / 1.4404

Size:

1'' - 4'', DN25 - DN100

Operation:

Stainless steel or plastic actuator is optional

Connection:

Clamp

Gasket:

EPDM + PTFE

Valve position regulator:

Optional combination

Spare parts:

Position sensor components

Menyoroti:

diaphragm check valve

3 way diaphragm valve

Deskripsi produk

Filling Sanitary Diaphragm Valve with Stainless steel actuator

Specifications

Product Name:	Mini multi-function canned Diaphragm Valve with Stainless steel actuator
Valve Body Material:	SS316L
Seal Material:	Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	8 Bar
Max.WorkingTemperature:	150 degree C
Availably size:	1''-4'', DN20-DN100
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Structure of valve body:	Vertical or horizontal
Configuration:	Flexible with various valve seat

Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2.      Diaphragm valve with Control Unit (C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
10. Body: Casting / Forging

Operation mode
Manual and Pneumatic operation

Available connection
Clamp / weld / thread / special connection

Control
Smart valve positioner / C-TOP control / position sensor

Material of seal ring
Single silicone gasket / Adhesive PTFE + EPDM / Two pieces PTFE + EPDM

Packaging
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.

Product display

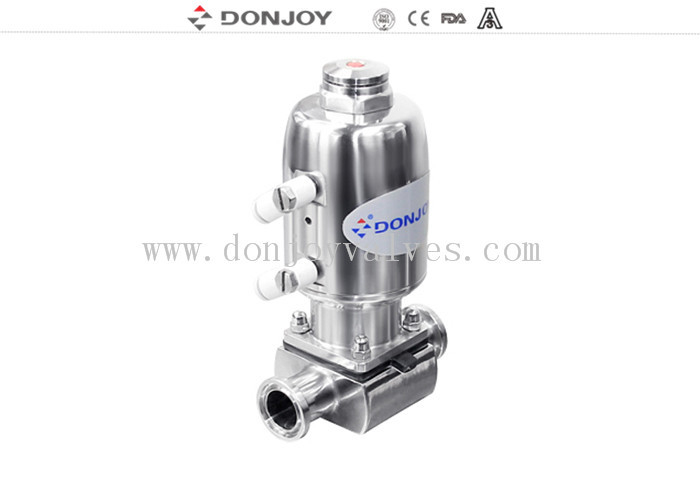

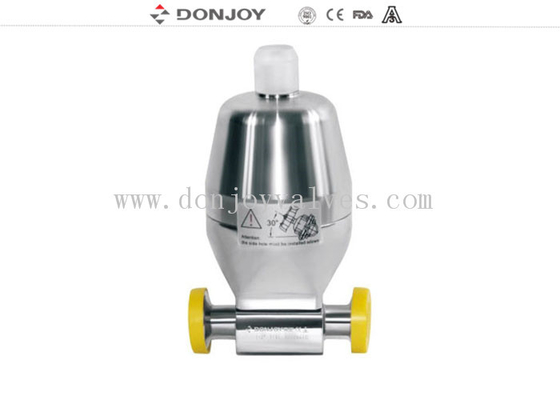

Filling Sanitary Diaphragm Valve with Stainless steel actuator 0

Tag : filling diaphragm valves, Pneumatic diaphragm valve, Filling valve
