Katup Diafragma Sanitasi

Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

Semua Kategori

Kaca penglihatan baja tahan karat

Fitting Sanitasi Baja Tahan Karat

Hubungi Kami

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Hubungi Sekarang

Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

Nama Merek:	Donjoy
Nomor Model:	NO. MINI-VGM0S2, NO.T-K
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

mini-type tee diaphragm valve

Size:

1/4"-3/4",DN6-DN15

Gasket:

SILICONE

Structure:

T port/ TEE

Max temp:

-30 to 150 degree c(depending on diaphragm)

Max pressure:

10bar/146psi

Menyoroti:

sanitary sample valve

3 way diaphragm valve

Deskripsi produk

Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

Specifications

Product Name:	SS316L T type Three - way plastic manual Sanitary Diaphragm Valve
Valve Body Material:	SS316L
Seal Material:	Single sillcone /EPDM gasket ,Adhesive PTFE+EPDM Two pieces PTFE+EPDM
Max Working Pressure:	10 Bar
Max.Working Temperature:	150 degree C
Material requirement:	Sanitary level
Available size:	1"-4", DN25-DN100
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Available structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc

Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.

Valve Body
Forging body

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
Casting body
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

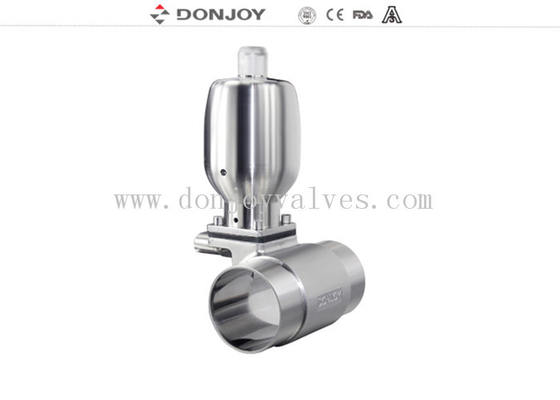

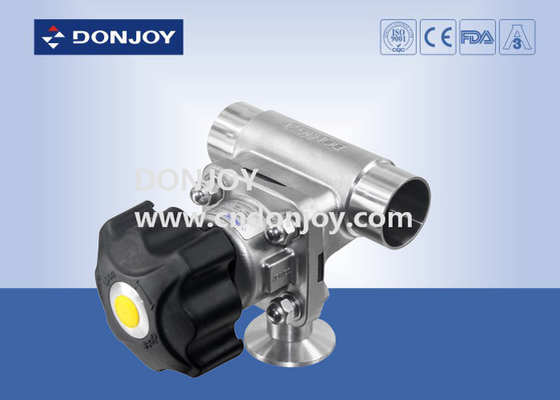

Photos of SS316L T type Three - way plastic manual Sanitary

Diaphragm Valve

Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type 0

Tags : Phamacy valve, 3 WAY diaphragm valve, ZDL valve
